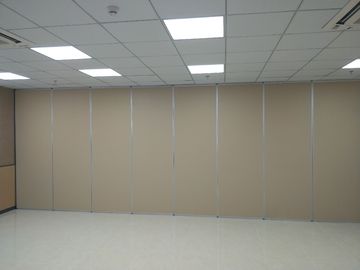

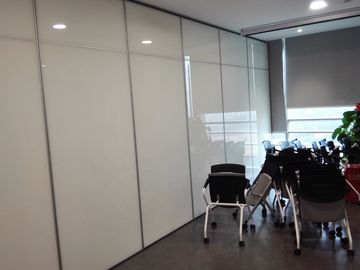

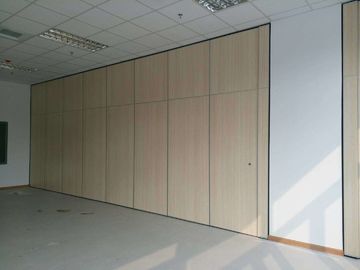

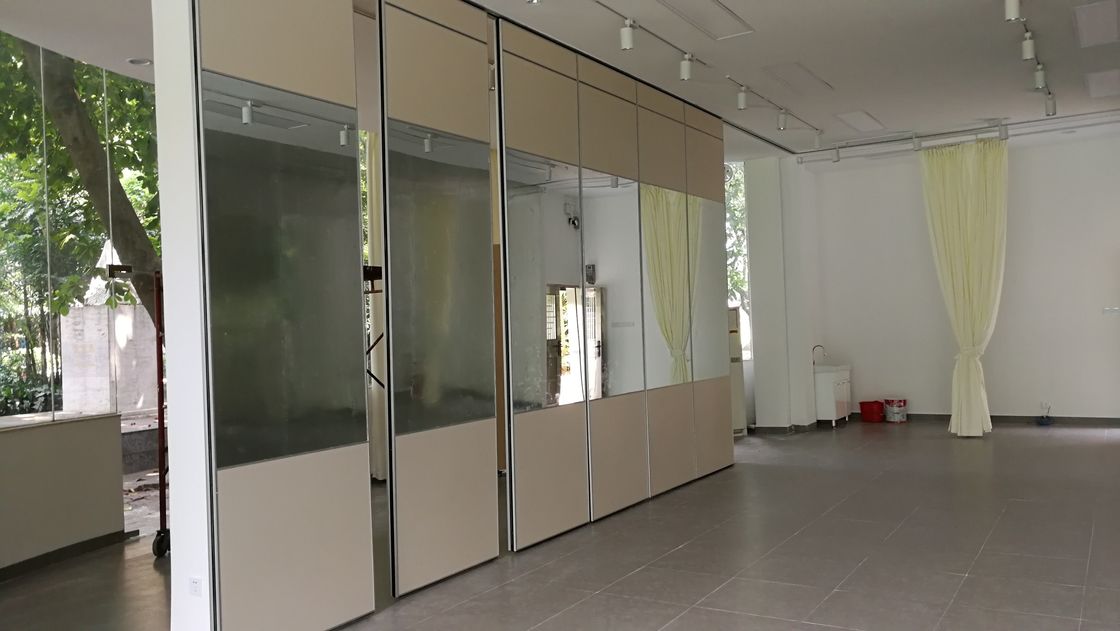

Movable Folding Partition Wall System Aluminium Frame Melamine Finish
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 85 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 102 / 133 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Partition Walls | Finished: | Melamine,fabric |
|---|---|---|---|
| Certificate: | ISO9001 | Height: | 6 M |
| Thickness: | 85 Mm | Door Material: | Aluminium Alloy |
| Open Style: | Sliding | Application: | Conference Room,office,meeting Room |
| Color: | Multi Color | ||
| High Light: | acoustic folding partition,soundproof folding partition |
||
Product Description
Aluminium Frame Soundproof Folding Partition Wall System
Specification:
Our movable and operable partition system accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system.
Type 85 panel details:
Product Information: The thickness of the partition is 85mm. There are single-wheel single-wheel type and single-plate double-wheel type. U-shaped and L-shaped doors can be opened. The maximum load of each screen is 450KG, and the bottom top telescopic range is 22.5mm.
Nature of the product: Magnetic strips are attached to the two screens. When they are close, they attract themselves. They have good sealing and sound insulation properties.
Among them: The reference plane is a medium-density fiberboard or splint, and its sound-insulating coefficient is RW=40dB, and its density is 32kg/m2.
Product use: Suitable for partition height between 3 meters and 7.5 meters.
Advantage:
The internal sliding doors offer countless benefits for an array of industries, could you benefit from the sliding wall dividers that we supply?
We provide you with the opportunity to choose something that accommodates your stylish needs. The sliding wall system is designed to be sophisticated and visually enhancing, no matter where it’s installed!
We pay careful attention to detail. We supply the sliding wall partitions in a complete range of coloured finishes, including white, grey and cream and birch, maple, ash, beech and oak wooden finishes. Our sliding wall doors are guaranteed to suit the interior of your property.
It is designed to be modern and professional but enables you to divide space efficiently. This sliding wall system incorporates a soundproof quality that absorbs any unwanted sounds, ultimately creating a more efficient environment. Our internal sliding doors provide an economic solution, so no matter how big or small your budget is, you’re sure to find exactly what you need!
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Introduction:
The sliding partition wall is our individual panel partition system offering an acoustic insulation rating of up to 53 dB.
Ideally suited for high specification applications due to the sheer flexibility, numerous stacking arrangements available and the impressive acoustic qualities this system offers.
The panels are operated by means of an internal scissor-jack mechanism and move effortlessly along an aluminium head track, when closed they form a secure fixed wall.
Movable wall system is a high quality bespoke movable wall system to suit timber panels up to 150 kiliograms in weight, there are multiple options for Door types, parking areas and track layouts.
Each door is a top hung straight sliding panel which sits inline with the other doors these panels can be moved into a parking area when the wall needs to be opened, pivot panels can be fixed or converted into sliding doors. Timber movable walls can be created to suit any space within reason.
