Melamine Finish Folding Classroom Office Partition Walls With Movable Aluminium Track
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 65 mm folding partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 87/124 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Finished: | Melamine,mdf Bare Finish,leather | Height: | 4 M |
|---|---|---|---|
| Certificate: | ISO9001 | Width: | 500-1200 Mm |
| Position: | Commercial | Sliding Door Type: | Folding Doors |
| Product Name: | Folding Partition Wall | Thickness: | 65 Mm |
| Application: | Classroom,office,hotel | ||
| High Light: | acoustic folding partition,soundproof folding partition |
||
Product Description

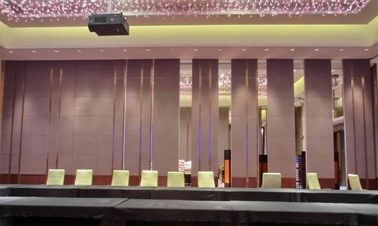

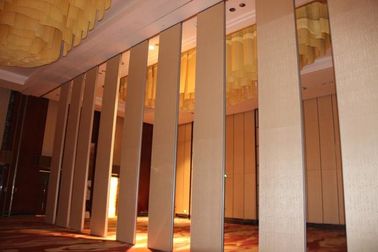

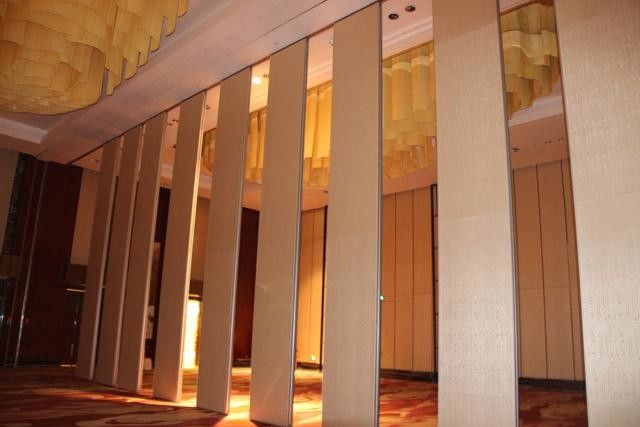

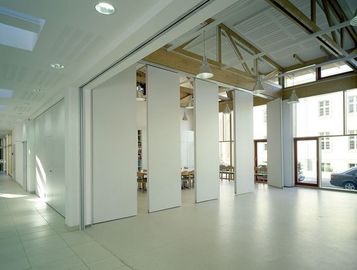

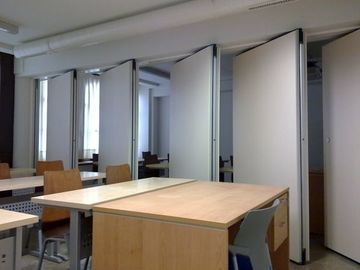

Movable Soundproof Folding Classroom Office Wall Partitions
Specification:
Folding partition wall system is ideal for dividing and creating rooms.
The folding wall system can either be supported from the ceiling and is made up of wall panels that are connected by hinges and stored at the end of the track when opening the wall. There are sound insulation seals between the panels, ceiling and floor.
Sliding Room Dividers divide a room in minutes with single thickness 65 mm sliding panels. No heavy beams or bracing in the ceiling is required. The lightweight top guide track can even mount directly to a suspended ceiling. The floor track is easily removable so the floor is clear when the room divider is not in use.
Folding partition Wall has excellent acoustical properties. When it comes to sound insulation this Movable Acoustic Wall is the obvious choice, its sound insulation ranges from 37-53 decibels.
Folding partition Wall Panels runs smoothly along its tracks on ball-bearing trolleys and is very easy to operate, it is rigid, robust and has safety features that assist in its operation.
Feature:
Maximize Your Space.
Folding partition walls provide a simple and cost-effective way of generating space. We have installed them in a wide range of commercial and public sector environments including offices, exhibition halls, and conference areas.
Quick to install and easy to operate, moveable walls are popular and functional. They maximize space and versatility in the workplace and provide powerful acoustic and fire performance, whilst seamlessly blending into your interior design thanks to a huge variety of possible finishes.
Cost savings: installation does not affect the construction of smallpox and the ground.
Various forms: optional with a variety of occasions partition wall, can be customized according to customer requirements.
Easy combination: in the re-assembly can make full use of building materials.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
|
Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Introduction:
The folding partition wall is our individual panel partition system offering an acoustic insulation rating of up to 53 dB.
Ideally suited for high specification applications due to the sheer flexibility, numerous stacking arrangements available and the impressive acoustic qualities this system offers.
The panels are operated by means of an internal scissor-jack mechanism and move effortlessly along an aluminium head track, when closed they form a secure fixed wall.
Folding partition wall system is a high quality bespoke movable wall system to suit timber panels up to 150 kiliograms in weight, there are multiple options for Door types, parking areas and track layouts.
Each door is a top hung straight sliding panel which sits inline with the other doors these panels can be moved into a parking area when the wall needs to be opened, pivot panels can be fixed or converted into sliding doors. Timber movable walls can be created to suit any space within reason.
Track system:
For single or paired panels up to 250 kg. One 4-wheeled carrier is provided per panel, each wheel is consists of molded polymer tires on hardened steel ball bearings.Resilient mounted body for quite operation and load distribution.special for center stacking option. Usual dimension from the ceiling to the structure is 200 mm.
For Omni-directional panel up to 225 kg. Two carriers are provided per panel. Each carrier has two horizontal counter-rotating wheels that roll (not slide) in the track. Each wheel has precision ground bearings, encased with POM for quiet operation. Carriers easily negotiate square or angled corners without switches. Usual dimension from the ceiling to the structure is 200 mm.
Application:
All of our folding partition wall systems are individually tailored to your exact requirements and are therefore the perfect solution when high acoustic performance and a feeling of quality are the main priorities.
Whilst widely used within hotel banqueting suites and conference centers with large muti-functional spaces they are also ideally suited for use within offices to give added flexibility to meeting, training and conference rooms.
The individual panels can be easily operated by handle because they are ceiling hung there is no potential obstruction from floor track to worry about giving maximum flexibility on how the space is used.
