Soundproof Wooden Folding Movable Partition Walls for Office / Conference Room

Soundproof Wooden Folding Movable Partition Walls for Office / Conference Room

Product Details:

Place of Origin: Guangdong
Brand Name: BANGE
Certification: ISO9001
Model Number: 85 mm movable partition walls

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: US Dollars 80 - 120 per square meters
Packaging Details: Carton package, MDF batten on four section sides , foam board on both front face.
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Open Style: Sliding Product Name: Movable Partition Walls
Feature: Sound Proofing Size: 85 Mm
Color: Accept Customized Application: Office,hotel,conference Room
Panel Width: 500 Mm--1230 Mm Door Material: Melamine Board
Surface: Melamine,leather,fabric,plywood Position: Interior
Width: 85 Mm(3 1/4 Inch)
High Light:

movable walls on wheels

,

acoustic movable walls

Product Description

Soundproof Wooden Folding Acoustic Movable Partition Walls for Office/Conference Room

The details of movable partition walls

BUNGE movable partition walls are made from mobile panels and are the ideal solution for teaching center and conference rooms and the division of waiting areas in airports and stations, entrance areas in banks, post offices and so on. The top and bottom locking and supporting edges of the door panels close along the whole width.

The structure is such that the glass need not be broken, rendering its life longer, and eventual repair work minimal. The covers for the top and bottom locking and supporting edges can be fixed using a clip. In this way surfaces are protected from both damage and scratching during assembly.
The sliding track is grooved, and with the correct screws it becomes possible to attach angle irons, for example for a false ceiling, without damaging the sliding track. The various surface finishes and wide range of colors ensure that the creativity employed will complement the architecture of the office perfectly.
The cover sheets are inter-changeable, allowing a new color scheme to be introduced at any moment. High-precision ball bearings guarantee a smooth slide and minimum sound, at a maximum weight of 150kg of the leaf. The various positioning possibilities of the panels (parallel/at 90° to the sliding track, or other) ensure that a solution is found to every requirement. The sliding track may be straight, curved or have a polygonal shape.

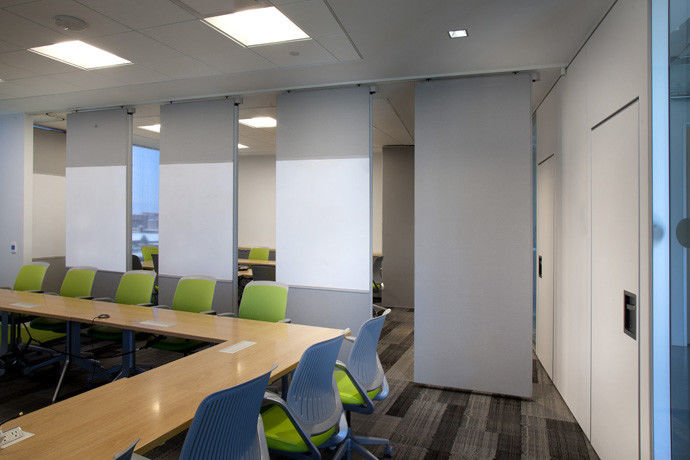

Soundproof Wooden Folding Movable Partition Walls for Office / Conference Room 0

The application of movable partition walls

Nowadays, the modern trend in buildings needs more flexibility and convenience to use the space of their rooms. Most of the building designers like to prepare open plan space, sound proof effect, and easy to operate. The solution of the designers need is the Movable Partition.

Movable partition walls are available in a several choices of plywood,MDF with melamine, fabric, fabric with foam, PU, and wall covering finishesassurance that the aesthetic integrity of your space will be preserved.

Movable partition walls can quickly divide a big area into several separate rooms for group activities, family gatherings, church suppers, classes, etc.

Movable partition walls also come in varying degrees of acoustical control to suit specific needs.

Converting meeting room space has never been so easy and flexible.

Movable partition walls provide a virtually limitless number of room configurations.

More room configurations mean optimum space use and more convention and meeting income from the same square footage. There will be more guest bookings and greater return on investment.

Movable partition walls with high rated acoustical control assures privacy for businesses in which confidentiality and quiet professiona are major concerns.Over many years of experience has taught us to begin each new project by considering the needs of the people who will be using our products.

Movable partition walls offer the ultimate in freedom, flexibility and value.

Areas can be divided into a virtually unlimited range of room or space configurations as often as several times a day, which is a common situation for busy restaurants nowadays.
Movable partition walls' goal is to meet those demanding criteria on every commercial project.

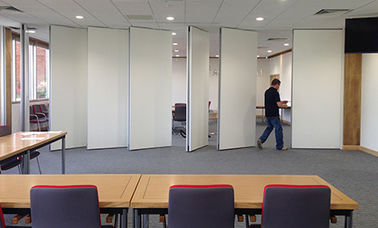

Soundproof Wooden Folding Movable Partition Walls for Office / Conference Room 1


Description of the whole system
Item movable partition systems
Partition Height 2-17 meters
Sound Transmission Class(STC) 32-55db
Description of accessories
Roller Imported dupont POM material roller,bearing capacity 225-1300kg
Track System Clear anodized 6063-T6 aluminum double track
Surface finish option MDF,plywood, melamine,HPL,fabric,PU,wood veer, mirror steel ect.
Junction "T"junction, "L" juntion, cross/ "X" juntion


The procedure of installing the movable partition walls

1. Please designate the responsible person before construction and leave contact information to facilitate communication between the two parties on construction logistics.

2. If the ground has been finished before the track construction, if the carpet, floor tiles, floor, etc. have been laid, you need to do ground protection to prevent the welding sparks from damaging the ground.

3. You need to provide the height of the shed after the decoration is completed. We will determine the height of the track installation according to this height.

4. Because we need to calculate the size of the hanging track, you need to provide the net size of the finished wall and the pillar. We will hang the track according to this size.

5. After the track suspension is completed, the reserved wall size given by you cannot be changed. Because we calculate the construction according to this size, if the size is changed, the door panel will not operate.

6. After the track suspension is completed, our construction personnel will fill in the dimensional confirmation letter to provide accurate data for the production of the wallboard. You need to specify the person in charge of the site to confirm.

7. The movable partition should be horizontally perpendicular to the ground directly below the track, and the error should not exceed 1cm.

8. If there are other constructions at the same time, please do not pierce the foreign objects such as nails and insert them on the installed rails. This will cause the door pulleys to not run in the track.

9. Each group of tracks will have a “raw mouth”, which will be removed before installing the door panel, and then installed after the door panel is installed. This "raw mouth" cannot be sealed.

10. In order to facilitate future maintenance and maintenance, please reserve the inspection port near the ceiling track to facilitate the maintenance personnel to enter the inspection port for product maintenance and maintenance.

11. If you need to improve the sound insulation effect of the product, after the track is hung, you can make sound insulation between the track and the original shed.

12. After the door panel is hung, it needs to be debugged. Active partition reminder Do not use the door panel before our personnel have debugged the door panel, otherwise forcible use will result in damage to the door panel.

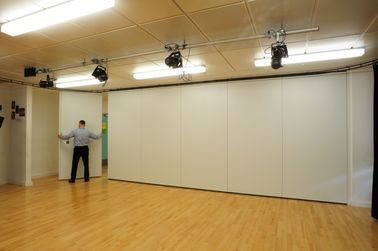

Soundproof Wooden Folding Movable Partition Walls for Office / Conference Room 2
