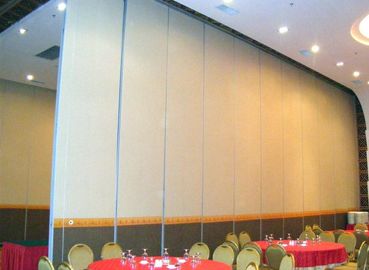

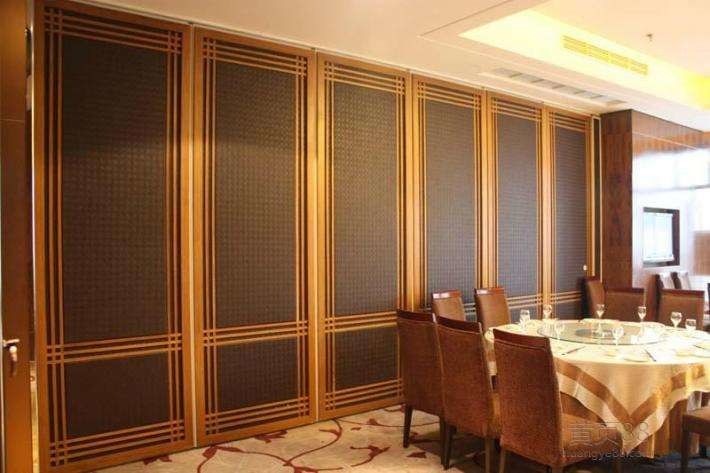

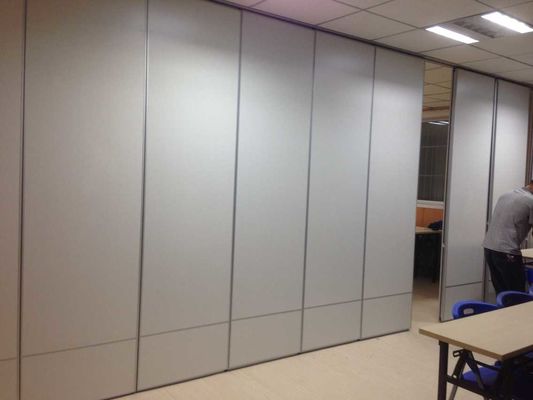

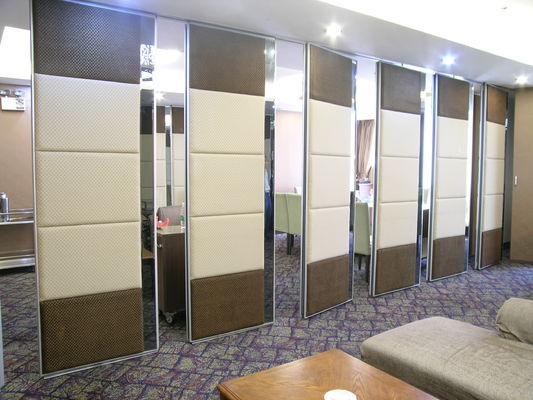

Customized Hotel Restaurant Sliding Partition Walls with Ceiling Rails
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BANGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm sliding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | US Dollars 80 - 120 per square meters |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Open Style: | Sliding | Product Name: | Sliding Partition Walls |
|---|---|---|---|
| Feature: | Sound Proofing | Size: | 85 Mm |
| Color: | Accept Customized | Application: | Office,hotel,conference Room |
| Panel Width: | 500 Mm--1230 Mm | Door Material: | Melamine Board |
| Surface: | Melamine,leather,fabric,plywood | Position: | Interior |
| Width: | 85 Mm(3 1/4 Inch) | ||
| High Light: | acoustic sliding partition,sliding folding partition |
||
Product Description
Customized Hotel Restaurant Soundproofing Sliding Partition Walls with Ceiling Rails
The structure of sliding partition walls
BUNGE sliding partition walls are made from mobile mdf wall panels and are the ideal solution for teaching center and conference rooms and the division of waiting areas in airports and stations, entrance areas in banks, post offices and so on. The top and bottom locking and supporting edges of the door panels close along the whole width.
The structure is such that the glass need not be broken, rendering its life longer, and eventual repair work minimal. The covers for the top and bottom locking and supporting edges can be fixed using a clip. In this way surfaces are protected from both damage and scratching during assembly.
The sliding track is grooved, and with the correct screws it becomes possible to attach angle irons, for example for a false ceiling, without damaging the sliding track. The various surface finishes and wide range of colors ensure that the creativity employed will complement the architecture of the office perfectly.
The cover sheets are inter-changeable, allowing a new color scheme to be introduced at any moment. High-precision ball bearings guarantee a smooth slide and minimum sound, at a maximum weight of 150kg of the leaf. The various positioning possibilities of the panels (parallel/at 90° to the sliding track, or other) ensure that a solution is found to every requirement. The sliding track may be straight, curved or have a polygonal shape.
The details about sliding partition walls
Model: BG65,BG85,BG100 Sliding Partition Walls
Sliding Partition wall thickness: 65mm~2.56inch, 85mm~3.35inch, 100mm~3.9inch
Board thickness: 9mm or 12mm
Blinds thickness: 16mm,25mm
Sliding Partition-wall standard length: ANY
Sliding Partition-wall standard height: 2000—13000mm, 78.7inch ~ 512inch
Optional material: Fabric/Melamine board/Glass/metal board/Aluminum Composite Panel/Soft panel/Blinds/Wooden board
Characteristic: Movable / Stable Structure/ Sound insulation / Pro-environment/ fireproofing / Stylish
Product dominant: Design systematization / Industrialization productions / Standardization Installation /
Diversification working / Modernization appearance
Service: Supply consulting service, CAD project, office layout design /Work environment consulting /Products instruction
Sales Countries: Mace in china. Sales all over the world.
| Description of the whole system | |
| Item | movable partition systems |
| Partition Height | 2-17 meters |
| Sound Transmission Class(STC) | 32-55db |
| Description of accessories | |
| Roller | Imported dupont POM material roller,bearing capacity 225-1300kg |
| Track System | Clear anodized 6063-T6 aluminum double track |
| Surface finish option | MDF,plywood, melamine,HPL,fabric,PU,wood veer, mirror steel ect. |
| Junction | "T"junction, "L" juntion, cross/ "X" juntion |
The application of sliding partition walls
Nowadays, the modern trend in buildings needs more flexibility and convenience to use the space of their rooms. Most of the building designers like to prepare open plan space, sound proof effect, and easy to operate. The solution of the designers need is the Movable Partition.
Sliding partition walls are available in a several choices of plywood,MDF with melamine, fabric, fabric with foam, PU, and wall covering finishesassurance that the aesthetic integrity of your space will be preserved.
Movable Wall / Operable Partition can quickly divide a big area into several separate rooms for group activities, family gatherings, church suppers, classes, etc.
Sliding partition walls also come in varying degrees of acoustical control to suit specific needs.
Converting meeting room space has never been so easy and flexible.
Sliding partition walls provide a virtually limitless number of room configurations.
More room configurations mean optimum space use and more convention and meeting income from the same square footage. There will be more guest bookings and greater return on investment.
