1200mm Width Sliding Acoustic Partition Walls For Showrooms , Mufti - function Hall

1200mm Width Sliding Acoustic Partition Walls For Showrooms , Mufti - function Hall
1200mm Width Sliding Acoustic Partition Walls For Showrooms , Mufti - function Hall 1200mm Width Sliding Acoustic Partition Walls For Showrooms , Mufti - function Hall 1200mm Width Sliding Acoustic Partition Walls For Showrooms , Mufti - function Hall 1200mm Width Sliding Acoustic Partition Walls For Showrooms , Mufti - function Hall

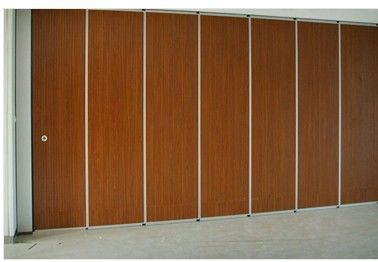

Large Image :  1200mm Width Sliding Acoustic Partition Walls For Showrooms , Mufti - function Hall

Product Details:

Place of Origin: China,Guangzhou
Brand Name: BUNGE
Certification: ISO9001
Model Number: Series 85 mm sliding partition wall

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: 118 / 133 dollar per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Detailed Product Description
Function: Soundproof Color: Multi Color
Open Style: Sliding Position: Commercial
Height: 6 M Application: Banquet Hall, Hotel
Thickness: 85 Mm Width: 500-1200 Mm
Panel Type: Melamine
High Light:

sliding folding partition

,

sound proof sliding partitions

Movable Acoustic Folding Hotel Sliding Partition Walls



Description:


The flexibility of activity partitions can be divided or combined according to the different needs of different occasions. The use of an active partition can create a good decorative effect in the integration of the overall style of the room, and it also acts as a partition of the partition itself.



The color of the partition is rich and colorful, and the colors are appropriately matched according to the owner's preference or the style of the room, and the permeability is enough to ensure privacy. At the same time, it is also possible to use some partitions with sound insulation as required.



With the continuous development of the industry, different styles and styles have appeared in the partitions. The appearance of hollow partitions has attracted more people's attention, and the hollow partitions can be used in various styles of places, whether Chinese or Western style, modern fashion style or ancient times. Elegant style has become a popular material.



The partitions can be divided into different styles according to different standards. There are fixed and flexible points. There are also hard and soft differences. No matter what kind of partition has its own suitable place, it is usually used in the family and can separate the living room. Different space with restaurant, bedroom, balcony, etc.



Application:



Hotel on the hanging rail activities partition products on the hotel hanging rails off the general framework of the aluminum frame material processing and production, internal partition expansion board, suitable for high-end hotel private rooms, banquet halls, conference rooms, showrooms, mufti-function Hall and so on. The sliding door base board is a MDF board or glass magnesium board. The decorative surface can be leather (cloth art) hard bag, soft bag, wallpaper, color steel veneer, hollow veneer and so on.

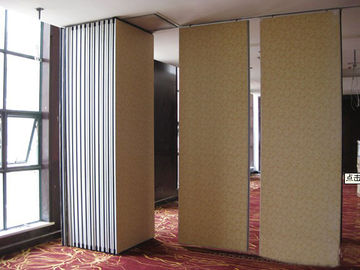

1200mm Width Sliding Acoustic Partition Walls For Showrooms , Mufti - function Hall 0


Technical information:



TYPE BG65 BG85 BG100
Panel suspension Top hung only
Track system Single or twin point
Panel thickness 65 mm 85 mm 100 mm
Panel height Up to 4000mm,heights greater than 3000mm refer to our technical dept. Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height 4000mm 6000mm 18000mm
Panel width

500 - 1200mm

1' 5/8" -- 4'

500 - 1200mm

1' 5/8" -- 4'

500 - 1200mm

1' 5/8" -- 4'

Frame Aluminum Aluminum Aluminum
Surface material 9mm 9mm 12mm
Fire safety Optional class I Optional class I Optional class I
Vertical profiles Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional
Retractable seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals
Operation of seals Manual, with supplied operating handle
Locking Optional lock to passing doors
Passing doors Single open in one panel or double open in two panel
Sound insulation 32-38dB Rw 36-45dB Rw 42-55dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx 30-48kg/sq M

Advantage:


1.Space management ~ Movable walls offer an effective space solution for many environments including offices, educational establishments, sporting facilities, dining and entertainment facilities, religious centers, or retail areas.



2.Operation ~ space without a trace ~ when the operable seals are retracted the panels will glide effortlessly and quietly along the unique aluminium overhead track system (no need for floor guide). Final closure of each panel is by a removable operating handle that extends the seal from the top and bottom of each panel forming an acoustic seal.



3.Acoustics ~ the movable wall is the highest specification range of fully operable, individual-panel systems. Acoustic insulation of up to 58dB noise reduction is achieved with a combination of acoustic infills and operable top and bottom seals.



4.Smart use of space – Movable walls offer a flexible solution for making the most of an interior space. Room sizes can be changed in a matter of moments to capitalism on the revenue potential of commercial space or simply create the most efficient use of floor space.


5.Adaptable configurations – The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.

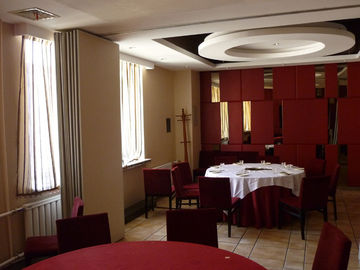

1200mm Width Sliding Acoustic Partition Walls For Showrooms , Mufti - function Hall 1



Sliding Partition Wall Operation:



(1)How to open a sliding partition wall?


All operations should be gentle and should pay attention to safety. Facing the screen station, use both hands to grab the screen and pull the screen in the direction of the rails; turn the screen in the direction of the rails.



After pushing the screen to its place, fix the screen. Tip: When pushing the screen to the intersection, you should pay attention to the direction of the rail, and then gently push the screen along the rail to the position where it should be placed.



(2)How to fix a sliding partition wall?


Hold the screen with one hand, and put the handle in the hexagonal steel at the 1100mm side of the screen side material. Hold the handle and turn it clockwise by 180 degrees (or continuously shake).The telescopic seal inside the screen will pop up to fix the screen.



Insert the handle into the groove on the side of the screen, and pull the handle upwards to open the expansion screen inside the screen to fix the screen. After putting the entire group of screens, check if the screen is straight? Whether it is on the same plane as the rail, if not straight, retract the upper and lower expansion seals to adjust until the screen is straight.
