|Application:||Office,conference Room||Width:||500-1200 Mm|
|Position:||Commercial||Sliding Door Type:||Folding Doors|
|Product Name:||Movable Partition Wall|
movable walls on wheels,
acoustic movable walls
Our movable partition system accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system.
Movable Partition Wall Feature:
1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;
2. Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;
3. Soundproof and environmental protection: sound insulation effect is good, the maximum sound insulation coefficient can reach 53 dB;
4. Insulation and energy conservation: excellent insulation performance, according to different seating rates, the large space is divided into small spaces to reduce the air conditioning power consumption;
5.High-efficiency fire prevention: The use of high-efficiency fireproof materials, good fireproof performance;
6. Beautiful and generous: any surface decoration, can be combined with the indoor decoration effect;
7. Retractable and flexible: The partitions move freely, promote flexibility, and one person can complete the entire process of partitioning.
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Panel thickness||65 mm||85 mm||100 mm|
|Max height||4000 mm||6000 mm||18000 mm|
|Panel width||500-1200 mm||500-1200 mm||500-1200 mm|
|Face material||9 mm||9 mm||12 mm|
|Pass doors||Single door or Double door|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)|
Panel faces are suspended from a steel frame with just 2 points of contact. The edges of panel faces are slotted into aluminium profiles.
This method of cladding the steel frame allows the panel faces to be acoustically separated from each other and thereby minimize the transfer of sound waves through the system.
Each panel has an extruded aluminium male profile to one vertical edge and a female profile to the other.These profiles are fitted with magnetic membranes which ensure positive interlocking of the panels.
Once the wall panels have been adjusted for height and level the roller stems are locked with a fail-safe mechanism to ensure that the panels will align perfectly every time the wall is set up.

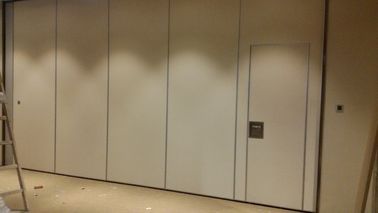

Movable wall partition pass door:
Push the door in the door to the position where it should be placed and the screen in front is tight. Insert the handle into the groove on the side of the screen (as shown in Figure 4), and pull the handle upwards to open the air-seal seal screen on the inside of the screen to fix the screen. Open the small door, insert the handle into the operation hole of the door leg on the other side of the screen, and pull the handle upwards to open the expansion screen on the other side of the screen to fix the screen.
All of our movable wall systems are individually tailored to your exact requirements and are therefore the perfect solution when high acoustic performance and a feeling of quality are the main priorities.

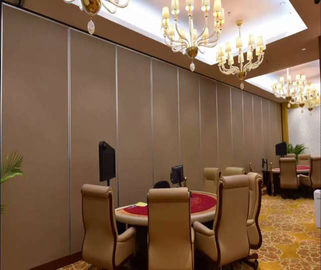

Whilst widely used within hotel banqueting suites and conference centers with large muti-functional spaces they are also ideally suited for use within offices to give added flexibility to meeting, training and conference rooms.
The individual panels can be easily operated by handle because they are ceiling hung there is no potential obstruction from floor track to worry about giving maximum flexibility on how the space is used.
For single or paired panels up to 250 kg. One 4-wheeled carrier is provided per panel, each wheel is consists of molded polymer tires on hardened steel ball bearings.Resilient mounted body for quite operation and load distribution.special for center stacking option. Usual dimension from the ceiling to the structure is 200mm.
For Omni-directional panel up to 225 kg. Two carriers are provided per panel. Each carrier has two horizontal counter-rotating wheels that roll (not slide) in the track. Each wheel has precision ground bearings, encased with POM for quiet operation. Carriers easily negotiate square or angled corners without switches. Usual dimension from the ceiling to the structure is 200 mm.
