Payment & Shipping Terms:
|Service:||OEM Service||Height:||4 M|
|Material:||MDF Board+Aluminium||Thickness:||65 Mm|
|Color:||Multi Color||Open Style:||Folding|
|Application:||Banquet Hall, Hotel|
acoustic sliding partition,
sliding folding partition

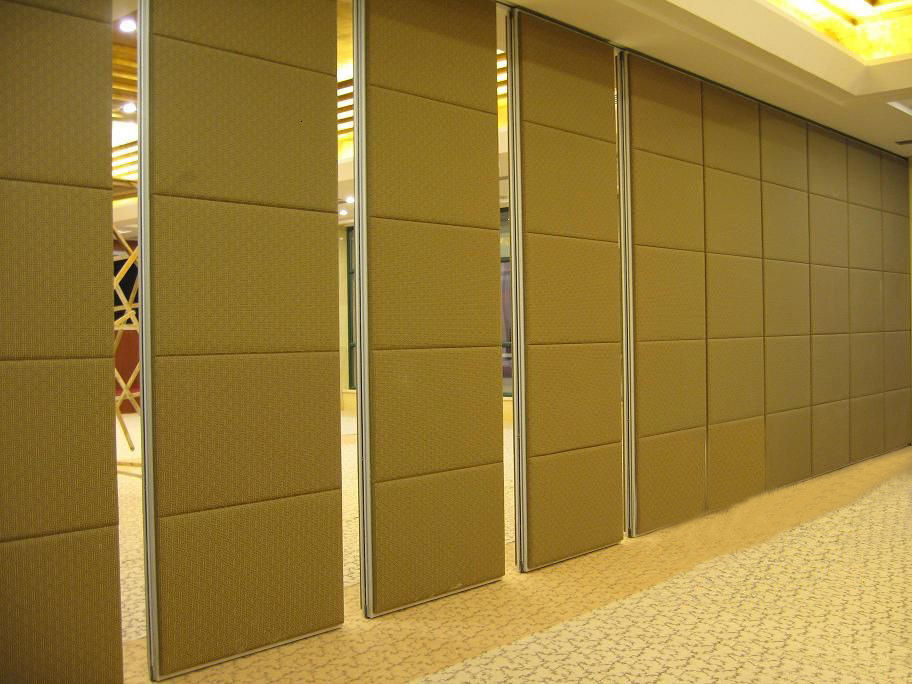

Sliding partition wall is our top of the range operable walls. The system offers several layouts and stacking arrangements to create many useful areas within the working space.
To create the seal, each panel has interlocking vertical profiles and retractable rubber seals. A handle inserted into the vertical edge of each panel operates the retractable seals. One half turn of the handle operates a mechanism inside the panel that moves the seal against the floor and against the track. In most cases the last panel has a telescopic leading edge with a rubber seal operated with a handle inserted into the face of the panel. This panel will close and seal the whole system. An option is also available for semi electric seal operation.
Face finishes available as standard are a wide choice of plain or wood grain melamine, real wood veneers, vinyl’s or spray painted. Doors can be inset into all movable office walls and can meet Disabled Door Access regulations if required.
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Panel thickness||65 mm||85 mm||100 mm|
|Max height||4000 mm||6000 mm||18000 mm|
|Panel width||500-1200 mm||500-1200 mm||500-1200 mm|
|Face material||9 mm||9 mm||12 mm|
|Pass doors||Single door or Double door|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)|
Operable partition is made of high quality anodized aluminum frame with composite materials.The panel has a standard thickness of 65 mm and a width up to 1200 mm.Maximum height can reach 4500 mm tall.Its vertical seal.together with the horizontal top and bottom retractable seals provide excellent acoustic insulation property of maximum STC 45 db in laboratory setting.Its high performance per dollar value make it becomes the most economical suitable for restaurant,schools,office,church,hospitals,shopping arcades and many other indoor applications product.
Stable and self-supporting frame construction.
Flexibility through wide variety of panel arrangements.
Ease of use & movement due to lightness in construction.
Smooth and silent while in operation.
Good acoustic performance.
Availability of unlimited choice of finishes.
Sliding partition wall can be applied in hotels, Muti-functions halls, Meeting Room, Convention Center, Residential area, College and School, Banquet hall, Training rooms etc. We provide quality and reliable services at very cost effective prices.
The partitions shall be top-supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used. The tracks are made from extruded anodized aluminum. The track housing shall utilize grooves and interlocking steel pins for better alignment of adjacent track section, and shall be reinforced overhead by drop rod brackets.
1. Partition production is usually completed by a design company in its own factory. The installation engineering part is produced on site. Therefore, after confirming the design drawings, the requirements for glass thickness, materials, hardware accessories, and borders shall be analyzed and explained.
2. Pay attention to the strong and weak power engineering during construction, because he not only concerns the installation and wiring of the company's supporting facilities in the future, so he must find a professional qualified cabling company, and have professional and technical personnel to carefully measure the construction site, and then All the drawings on the drawings show the status of reserved switches, sockets, and the direction of various lines.
