Folding Sliding Operable Partition Walls for Banquet Hall / Sound Absorbing Room Dividers
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BANGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm sliding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | US Dollars 80 - 120 per square meters |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Open Style: | Sliding | Product Name: | Sliding Partition Walls |
|---|---|---|---|
| Feature: | Sound Proofing | Size: | 85 Mm |
| Color: | Accept Customized | Application: | Office,hotel,conference Room |
| Panel Width: | 500 Mm--1230 Mm | Door Material: | Melamine Board |
| Surface: | Melamine,leather,fabric,plywood | Position: | Interior |
| Width: | 85 Mm(3 1/4 Inch) | ||
| High Light: | acoustic sliding partition,sound proof sliding partitions |
||
Product Description

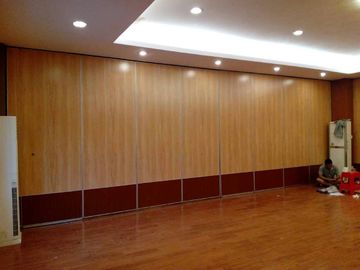

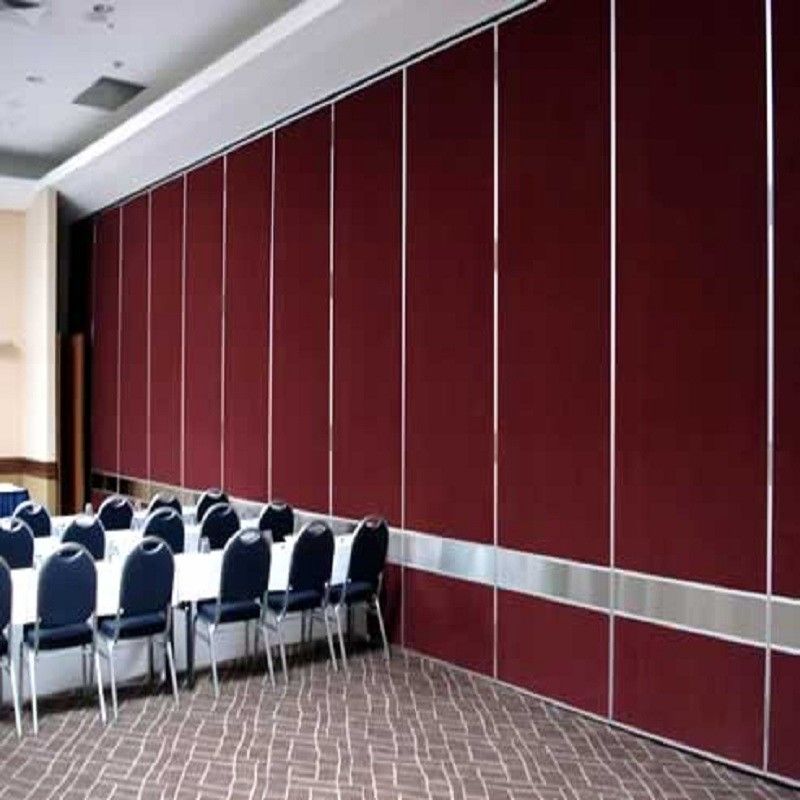

Banquet Hall Soundproof Folding Sliding Acoustic Operable Partition Walls
The specifications of sliding partition walls
No floor rails: Top hung system without the need for a floor track
Stable and safe: Stable and reliable after the partition, easy to swing
Sound insulation: Sound insulation effect, the maximum sound insulation up to 570B, we can offer various levels of sound reduction
Insulation energy saving: Excellent insulation performance, according to different seating rate, the large space is divided into small space to reduce air conditioning power consumption
Efficient fire: The use of highly efficient fire prevention materials, fire performance is good
Retractable and flexible: Retractable top and bottom seals ensure effortless movement of panels, numerous panel stacking options for complete flexibility,only a person can complete the whole process of cutting off.
The advantages of BUNGE sliding partition walls
Each industry has its own industry standards, especially those related to safety products, and for the activities of the screen industry, they will have their own product standards, such as the product of the barrier performance. The following is Bunge activities screen product performance introduction.
High quality. The use of environmentally friendly materials, formaldehyde emission in line with national standards {1.5mg / L}, The material has strong, durable ,abrasion resistance, fire protection, anti-deformation, anti-flammability, anti-aging, fastness, etc.anti-aging；
High noise. Fully meet the five-star hotel noise standards, the highest sound insulation up to 55db ,more than 30% stronger than ordinary indoor wall insulation;
Wide range of applications. Movable partition screen used in the star hotel Banquet Hall, Conference Room, Exhibition Hall, Office, Multi-Function Hall and other large space need to be divided into places;
Can be customized on demands. Customized according to the different needs of customers, such as cut off the model, surface decoration and collection methods such as design, to meet the different site decoration style.
| Description of the whole system | |
| Item | movable partition systems |
| Partition Height | 2-17 meters |
| Sound Transmission Class(STC) | 32-55db |
| Description of accessories | |
| Roller | Imported dupont POM material roller,bearing capacity 225-1300kg |
| Track System | Clear anodized 6063-T6 aluminum double track |
| Surface finish option | MDF,plywood, melamine,HPL,fabric,PU,wood veer, mirror steel ect. |
| Junction | "T"junction, "L" juntion, cross/ "X" juntion |
The description of sliding partition walls
1. Horizontal Seals
The principle of double skin construction on movable and operable partition system is applied consistently in the seal area in order to ensure maximum sound insulation. A spindle mechanism presses extendable, spring loaded, double seals against the floor and the ceiling track. Any irregularities in the flooring are offset by spring-loaded double chamber seals. The contact force of the sealing strips does not place excessive strain on screed floors, but does ensure that the flexible system is sufficiently stable to prevent the panels moving, even in the event of an attempted forced entry.
2. Corner Seals
Flexible resolves the technical issue of corner seals with specially designed, corner pieces that also reinforce the stability and done insulation properties of movable and operable partition system.
3. Magnetic Strip
The individual panels are centered via the magnetic strips to guarantee sound positive locking and sealing.
4. Operating Handle
In manual systems, the element sealing strips are operated using a crank. The crank has as a captive bayonet fitting to prevent it from being pulled off. The bayonet arrangement is easy to disengage and prevents crank slip page on movable and operable partition system.
5. Frames
The sliding partition walls aluminum frame is made by torsion hollow-chamber aluminum alloy and sectional by steel tubing. Therefore, Transverse forces will not cause any deformation for the frame. Combined with the panel mounted in acoustically free suspension, flexible elements are able to offer both exceptional strength and outstanding sound insulation for movable and operable partition system.
6. Roller Assemblies
The dampening track roller assemblies prevent the transmission of impact forces and operating noise, to protect the element, rail and carrier on movable and operable partition system.
