Soundproof Office Floor to Ceiling Partition Wall With Movable Track Aluminium Profile
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 65 mm sound proof partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 102 / 138 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Function: | Soundproof | Color: | Multi Color |
|---|---|---|---|
| Panel Type: | Melamine | Metal Type: | Aluminium |
| Open Style: | Sliding | Width: | 500-1200 Mm |
| Position: | Commercial | Height: | 4 M |
| Service: | OEM Service | Application: | Office,conference Room |
| Thickness: | 65 Mm | ||
| High Light: | movable sound proof partitions,movable soundproof partition |
||
Product Description

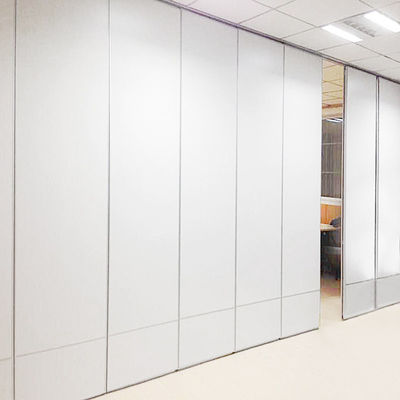

Movable Track Soundproof Office Floor to Ceiling Partition Wall
Description:
Our movable and operable partition system accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system.
Acoustic performance:
Can be used to limit noise transmission between rooms by using optional dense cladding and internal insulation. Bunge panels have been tested to achieve sound reduction ratings of up to Rw 55 dB, measured in accordance with BS EN ISO 140-3. Can be used to adjust room reverberation time using optional textile coverings or optional perforated over cladding.
Feature:
Top hung with no floor track.
Scissor-jack operating mechanism.
Available with virtually any surface finish.
Ideal for conference centres, hotels, offices & schools.
Angled, glazed, corner or junction panels for maximum flexibility.
Single or double point suspension for versatile stacking options.
Panels with hinged pass door, single or double leaf inset pass door panels for access through.
Full maintenance contracts available.
Technical information:
| TYPE | BG65 | BG85 | BG100 | |
| Panel suspension | Top hung only | |||
| Track system | Single or twin point | |||
| Panel thickness | 65 mm | 85 mm | 100 mm | |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | ||
| Max height | 4000mm | 6000mm | 18000mm | |
| Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
|
| Frame | Aluminum | Aluminum | Aluminum | |
| Surface material | 9mm | 9mm | 12mm | |
| Fire safety | Optional class I | Optional class I | Optional class I | |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | |
| Operation of seals | Manual, with supplied operating handle | |||
| Locking | Optional lock to passing doors | |||
| Passing doors | Single open in one panel or double open in two panel | |||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw | |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M | |
Design information:
Design and technology are the essentials of a successful alliance between architecture. The transformation of a large hall into two or more sound-insulated areas which perfectly respond to the requirements of the designer and the needs of the user without style and functionality, can all be achieved by means of movable sound-insulated walls.
The use of modular elements over 4.5 meters high, on a mono-track sliding system has made it possible to rationalize space with extreme creativity. In view of the wide choice of available (in this case vertically seamless elegant ecological leatherette was used), movable walls can be personalized according to the individual whim or requirement.
The multifunctional interiors have been designed with a view to greater focus on People’s well-being with the model. The architects designed the interiors in every detail to osier the best acoustic comfort of work environments. The movable walls incentive to obtain the ISO9001 certification with level, qualifying for energy prescience and material choice.
Advantage:
Our movable partition utilises up to date materials and manufacturing methods and can attain much higher levels of sound attenuation than was previously achievable with a folding partition. The sliding wall is extremely easy to use and incorporates important features such as integral pass door and a flush appearance when closed.
It is available as a ceiling track hung system with our without floor location pins, or as a floor mounted system supported on an ultra low profile floor track that can be installed flush with the floor covering. The floor mounted system utilizes a ceiling guide track that can accommodate an adjustment tolerance of 22.5 mm. both systems are enviable as centre or end tracking.
Track system:
For single or paired panels up to 250kg. One 4-wheeled carrier is provided per panel, each wheel is consists of molded polymer tires on hardened steel ball bearings.Resilient mounted body for quite operation and load distribution.special for center stacking option. Usual dimension from the ceiling to the structure is 200mm.
For Omni-directional panel up to 225kg. Two carriers are provided per panel. Each carrier has two horizontal counter-rotating wheels that roll (not slide) in the track. Each wheel has precision ground bearings, encased with POM for quiet operation. Carriers easily negotiate square or angled corners without switches. Usual dimension from the ceiling to the structure is 200 mm.
