Operable Removable Partition Walls for Banquet Hall 65mm Thickness
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 85 mm movable partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 105 / 129 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Function: | Soundproof | Color: | Multi Color |
|---|---|---|---|
| Panel Type: | Melamine | Height: | 4 M |
| Service: | OEM Service | Metal Type: | Aluminium |
| Thickness: | 65 Mm | Open Style: | Sliding |
| Width: | 500-1200 Mm | Position: | Commercial |
| Application: | Restaurant,hotel | ||
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description

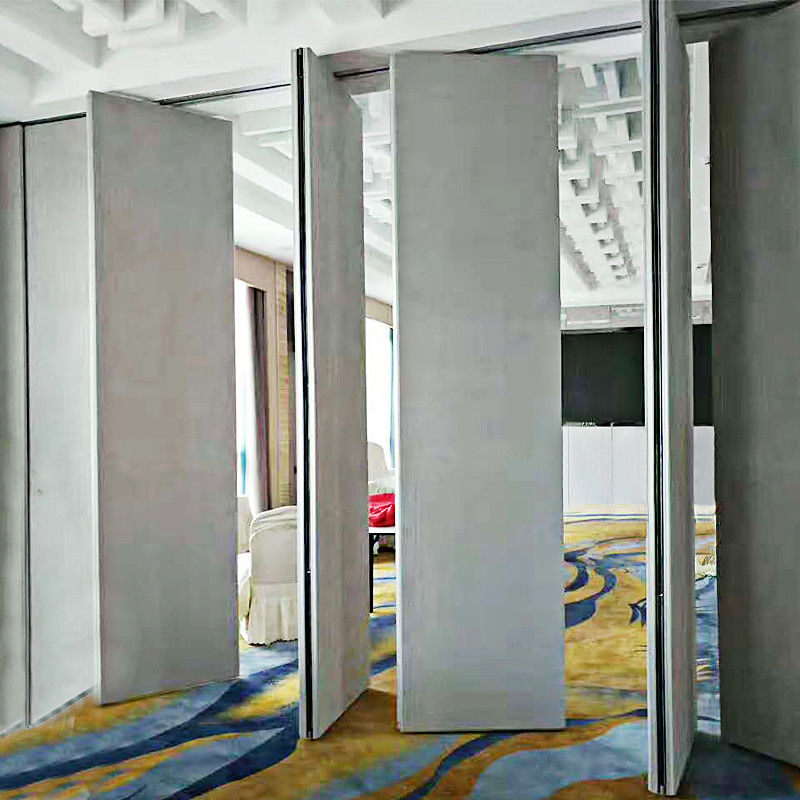

Commercial Operable Walls Banquet Hall Removable Partitions
Description:
Movable partition wall is our top of the range operable walls. The system offers several layouts and stacking arrangements to create many useful areas within the working space.
Removable partitions are solid acoustic sliding partitions available in three varying thicknesses and laboratory tested sound rating up to Rw 53dB. This system is top hung. Each panel is individually supported by a track system mounted on the ceiling. No floor track is required.
To create the seal, each panel has interlocking vertical profiles and retractable rubber seals. A handle inserted into the vertical edge of each panel operates the retractable seals. One half turn of the handle operates a mechanism inside the panel that moves the seal against the floor and against the track. In most cases the last panel has a telescopic leading edge with a rubber seal operated with a handle inserted into the face of the panel. This panel will close and seal the whole system. An option is also available for semi electric seal operation.
Face finishes available as standard are a wide choice of plain or wood grain melamine, real wood veneers, vinyl’s or spray painted. Doors can be inset into all movable office walls and can meet Disabled Door Access regulations if required. Glazing can also be incorporated into the panels.
Feature:
1.Space management ~ Movable walls offer an effective space solution for many environments including offices, educational establishments, sporting facilities, dining and entertainment facilities, religious centers, or retail areas.
2.Smart use of space – Movable walls offer a flexible solution for making the most of an interior space. Room sizes can be changed in a matter of moments to capitalism on the revenue potential of commercial space or simply create the most efficient use of floor space.
3.Acoustics ~ the movable wall is the highest specification range of fully operable, individual-panel systems. Acoustic insulation of up to 58dB noise reduction is achieved with a combination of acoustic infills and operable top and bottom seals.
4.Adaptable configurations – The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.
5.Panel options ~ Individual panels can be constructed with either manual or semi automatic retractable top and bottom seal. Panels are also available curved or with inset pass doors and glazed cut outs.
Technical information:
| TYPE | BG65 | BG85 | BG100 | |
| Panel suspension | Top hung only | |||
| Track system | Single or twin point | |||
| Panel thickness | 65 mm | 85 mm | 100 mm | |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | ||
| Max height | 4000mm | 6000mm | 18000mm | |
| Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
|
| Frame | Aluminum | Aluminum | Aluminum | |
| Surface material | 9mm | 9mm | 12mm | |
| Fire safety | Optional class I | Optional class I | Optional class I | |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | |
| Operation of seals | Manual, with supplied operating handle | |||
| Locking | Optional lock to passing doors | |||
| Passing doors | Single open in one panel or double open in two panel | |||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw | |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M | |
Structure:
Movable partition is the evolution of operable partition with blind panels and is a perfect acoustic room divider.
It is the answer to all the requirements of a physical, not visual, partition of the spaces and is a perfect acoustic room divider.
Thanks to its silent sliding system, to its thin structure in anodized aluminium and to the simple sliding of the seals, allows a light and transparent closure.
The vertical profiles, studied for the safety control of the inside glazed panels and for the edging of the elements, are coupled with male/female system. The glass (or the covering material) is completely enclosed within the aluminium frame: it is applied to it, not mechanically bound, allowing therefore a wide range of finishings alternatives.
Operation:
When the operable seals are retracted, panels glide effortlessly and quietly along the unique aluminium overhead track system (no need for floor guide).
Telescopic end panels enable the wall to be locked off to complete the acoustic seal. The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.
For ultimate aesthetic appeal, partitions can be supplied with practically any surface finish, including veneers, laminates, wall coverings, carpet, white board and decorative paintwork.
Introduction details:
The sliding partition wall is our individual panel partition system offering an acoustic insulation rating of up to 53 dB.
Ideally suited for high specification applications due to the sheer flexibility, numerous stacking arrangements available and the impressive acoustic qualities this system offers.
The panels are operated by means of an internal scissor-jack mechanism and move effortlessly along an aluminium head track, when closed they form a secure fixed wall.
