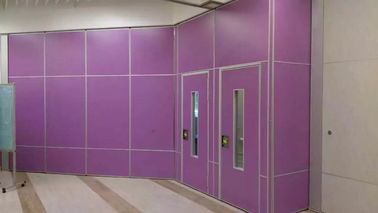

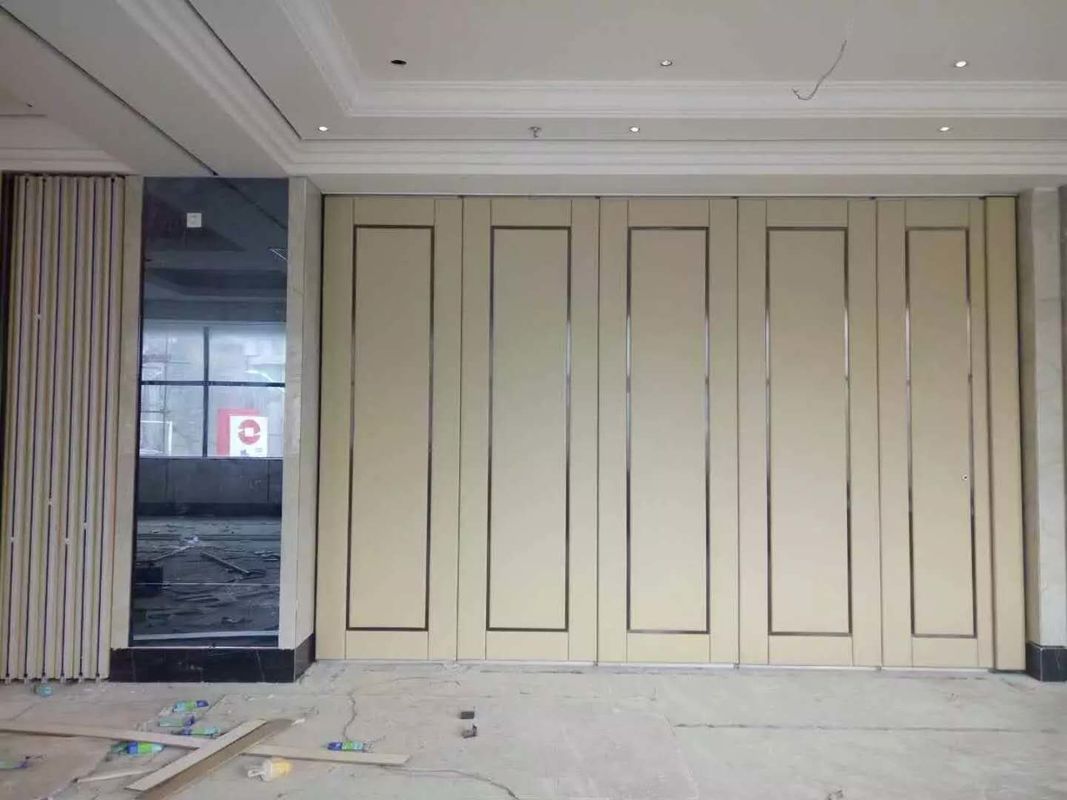

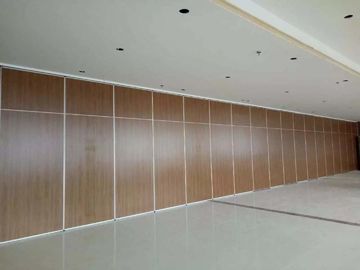

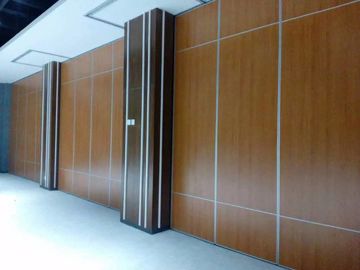

Soundproof Movable Acoustic Room Dividers With Aluminium Frame
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 85 mm acoustic room divider |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 109 / 131 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Metal Type: | Aluminium+melamine | Width: | 500-1200 Mm |
|---|---|---|---|
| Open Style: | Folding | Function: | Soundproof |
| Thickness: | 85 Mm | Height: | 6 M |
| Service: | OEM Service | Surface: | Melamine |
| Application: | Banquet Hall, Restaurant | Position: | Commercial |
| High Light: | conference room dividers,sound proof room divider |
||
Product Description
Soundproof Movable Wall Acoustic Partition Room Dividers Banquet Hall
Description:
The activity screen is a movable wall that can be easily dismantled and reloaded, and is often found in large spaces such as hotels, exhibition halls, restaurants, and offices.
Active Screen Materials The active screens can also be used as mobile screens, movable partitions, and track partitions. It is a kind of movable wall that can separate large spaces into adjacent small spaces. It can serve as a common wall and increase the function of large spaces. This screen is generally fire-resistant, flexible and easy to install and can be recycled.
There are 65, 85, 100 types of active screens, as well as models with semi-glass and telescopic models.
Feature:
No floor rails: floor without track, just install the track on the ceiling.
Stable and safe: stable and reliable after the partition, easy to swing.
Insulation energy saving: excellent insulation performance, according to different seating rate, the large space is divided into small space to reduce air conditioning power consumption.
Efficient fire: the use of highly efficient fire prevention materials, fire performance is good.
Nice: the surface of any decoration, with a unified indoor decorative effect.
Retractable and flexible: the partition retractable, flexible, a person can complete the whole process of cutting off.
Collection convenience: the closing board, the partition can be hidden in the special storage expensive, does not affect the overall appearance.
Advantage :
1.Space management ~ Movable walls offer an effective space solution for many environments including offices, educational establishments, sporting facilities, dining and entertainment facilities, religious centers, or retail areas.
2.Smart use of space – Movable walls offer a flexible solution for making the most of an interior space. Room sizes can be changed in a matter of moments to capitalism on the revenue potential of commercial space or simply create the most efficient use of floor space.
3.Acoustics ~ the movable wall is the highest specification range of fully operable, individual-panel systems. Acoustic insulation of up to 58dB noise reduction is achieved with a combination of acoustic infills and operable top and bottom seals.
4.Operation ~ space without a trace ~ when the operable seals are retracted the panels will glide effortlessly and quietly along the unique aluminium overhead track system (no need for floor guide). Final closure of each panel is by a removable operating handle that extends the seal from the top and bottom of each panel forming an acoustic seal.
5.Adaptable configurations – The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.
Technical information:
| TYPE | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Operation:
A large amount of repairs are as a result of incorrect operation by users. Movable wall panels are deceptively heavy due to the ease of operation but are capable of serious crush injuries. Your work place risk assessments should have taken this into account and state that only trained and authorized personnel may operate the wall. we will offer training on the safe and correct operation of your system to your staff.
Movable walls and sliding folding partitions do have a life cycle and there is a point where maintenance and repairs become either impossible or uneconomical.
