Acoustic Folding Movable Conference Room Partition Wall with Wheels

Acoustic Folding Movable Conference Room Partition Wall with Wheels

Product Details:

Place of Origin: Guangdong
Brand Name: BANGE
Certification: ISO9001
Model Number: 85 mm movable partition walls

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: US Dollars 80 - 120 per square meters
Packaging Details: Carton package, MDF batten on four section sides , foam board on both front face.
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Open Style: Sliding Product Name: Movable Partition Walls
Feature: Sound Proofing Size: 85 Mm
Color: Accept Customized Application: Office,hotel,conference Room
Panel Width: 500 Mm--1230 Mm Door Material: Melamine Board
Surface: Melamine,leather,fabric,plywood Position: Interior
Width: 85 Mm(3 1/4 Inch)
High Light:

movable partitions systems

,

acoustic movable walls

Product Description

Conference Room Acoustic Folding Movable Partitions Wall Dividers on Wheels



Movable partition walls notice



1. The bearing capacity of different materials is different.



2. All movable partition walls installation should follow the professional guidance installation.



3. When you are not using it, you need to put it in a ventilated space to avoid moisture.



4. If the installation is not smooth during the middle of use, contact the manufacturer to solve the problem.



5. Avoid using sharp objects as much as possible during use.



6. Use a professional cleaning materials to clean.

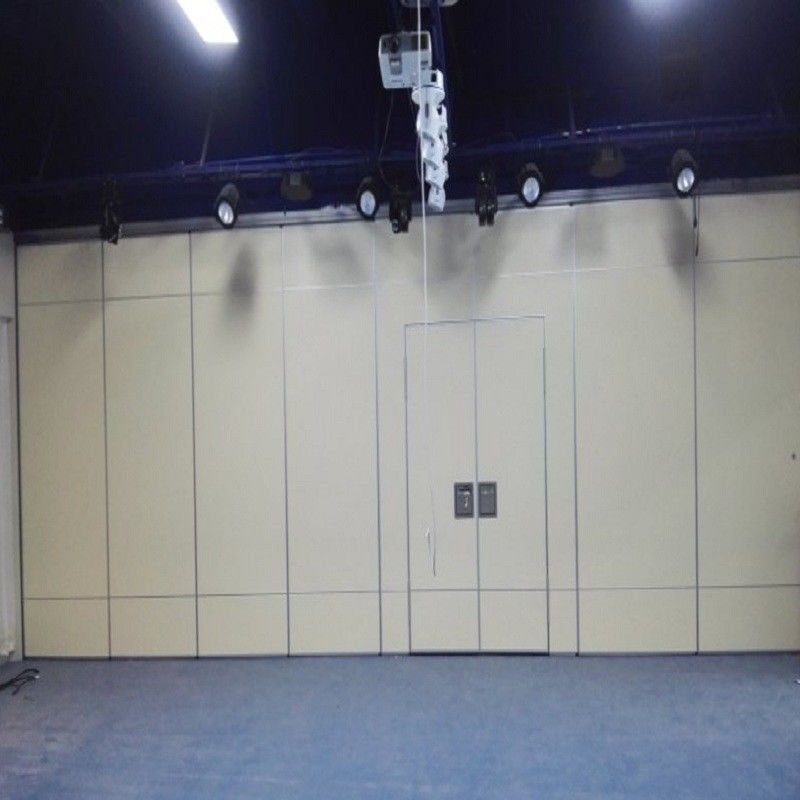

Acoustic Folding Movable Conference Room Partition Wall with Wheels 0

Description of the whole system

Item movable partition systems
Partition Height 2-17 meters
Sound Transmission Class(STC) 32-55db
Description of accessories
Roller Imported dupont POM material roller,bearing capacity 225-1300kg
Track System Clear anodized 6063-T6 aluminum double track
Surface finish option MDF,plywood, melamine,HPL,fabric,PU,wood veer, mirror steel ect.
Junction "T"junction, "L" juntion, cross/ "X" juntion



The different kind of movable partition walls



(1) 65 mm movable partition walls.



Type 65 hotel movable partition wall thickness is 65mm, usually 800-1230mm wide and 2000-4200mm high. The skeleton is composed of aluminum and wooden. The soundproof effect is different according to the use of the datum plane and the weight of the dangle is slightly different. Between 32-48 decibels, the hotel uses this model for partitioning. About width and height can be customized according to actual needs.

(2) Type 70 mm movable partition walls.



Type 70 hotel movable partition wall thickness is 70mm, usually 800-1200mm wide, 2000-4000mm high, the frame material is made of aluminum alloy material, sound insulation effect is different according to the use of datum plane and the hanging weight is not the same, slightly different. Between 32-42 decibels, the hotel uses this model for partitioning. About width and height can be customized according to actual needs.

(3) Type 75 mm movable partition walls.



75-type hotel movable partition wall thickness is 75mm, usually 800-1500mm wide, 2000-4000mm high, the frame material is made of aluminum alloy material, the sound insulation effect is different according to the use of the reference surface and the hanging weight is not the same slightly different. Between 32-45 decibels, the hotel uses this model for partitioning. About width and height can be customized according to actual needs.

(3)Type 80 mm movable partition walls.



Type 80 hotel movable partition wall door thickness is 80mm, usually 800-1500mm wide, high 2000-6000mm, the frame material is made of aluminum alloy material, the load per meter of up to 450 kg. The soundproofing effect differs slightly depending on the use of the datum plane and the hanging weight, ranging from 33 to 47 decibels. The hotel can also be customized according to actual needs.

(4) 100 mm movable partition walls



100-type hotel movable partition wall thickness is 100mm, usually 800-1600mm wide, 8000-20000mm high, the distance from the ceiling to the load-bearing structure is 150mm, the load per meter of up to 650 kg can be used according to the use of the reference plane and the weight The difference is between 45 and 55 decibels, and the hotel can be customized according to actual needs.

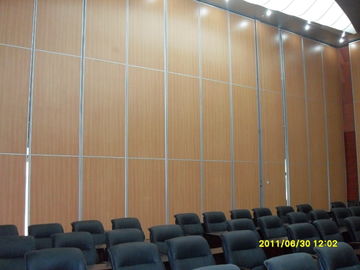

Acoustic Folding Movable Conference Room Partition Wall with Wheels 1

Decorative panel type



MDF
Melamine panel
Soft Fabric (Fireproof Fabric Options)
Hard cloth (fireproof fabric option)
Acoustic panels, etc., can be customized according to customer needs.



Common Applications:

1.Studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.

2.Theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.

3.Meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.

4.Air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.
Acoustic Folding Movable Conference Room Partition Wall with Wheels 2
