Customized Movable Acoustic Sliding Partition Walls Panel Width 500mm
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BANGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm sliding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | US Dollars 80 - 120 per square meters |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Open Style: | Sliding | Product Name: | Sliding Partition Walls |
|---|---|---|---|
| Feature: | Sound Proofing | Size: | 85 Mm |
| Color: | Accept Customized | Application: | Office,hotel,conference Room |
| Panel Width: | 500 Mm--1230 Mm | Door Material: | Melamine Board |
| Surface: | Melamine,leather,fabric,plywood | Position: | Interior |
| Width: | 85 Mm(3 1/4 Inch) | ||
| High Light: | sliding folding partition,sound proof sliding partitions |
||
Product Description

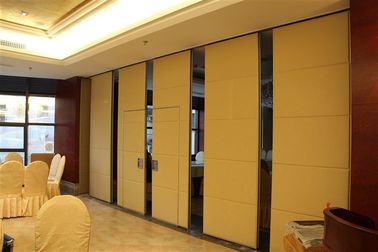

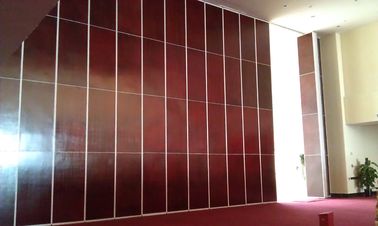

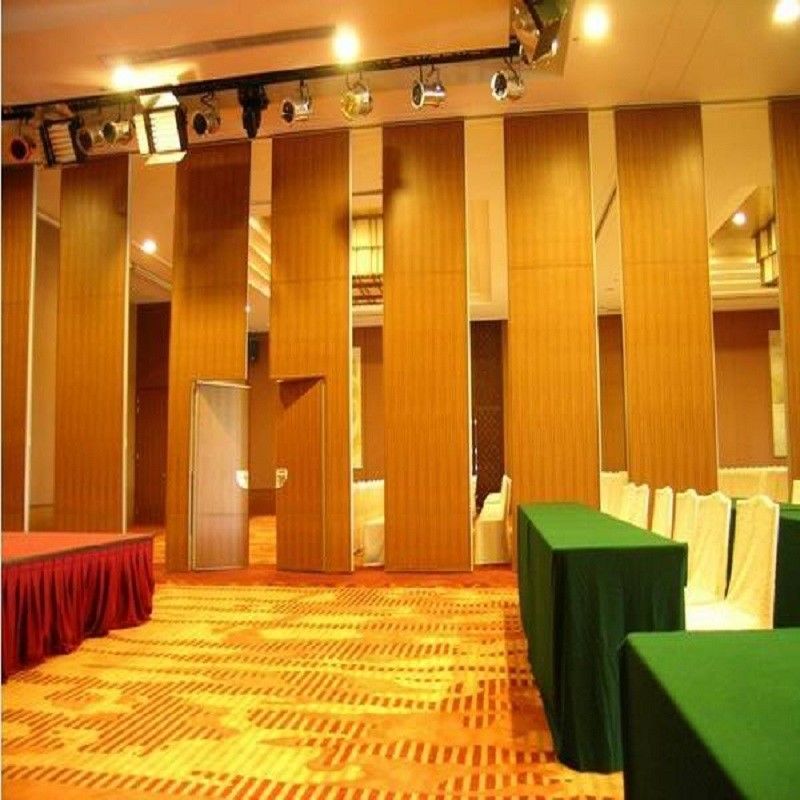

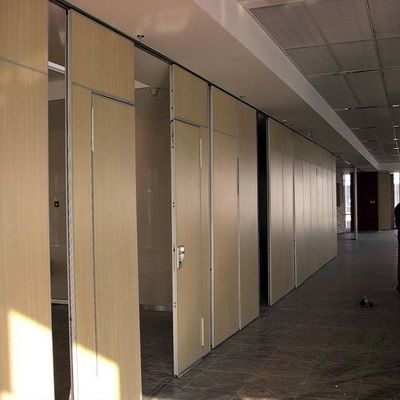

Movable Acoustic Partition Walls, Soundproofing Office Partitions, Sliding Partition Walls
Features:
1)Thickness panel:65mm,85mm,100mm, height from 2meter to 17meter
2)Top supported without floor track or guide
3) Clear anodized extruded aluminum tracks and frames,customized powder coated color are available
4) Rock wool infill,with top and bottom retractable mechanism in the middle and mdf,plywood or plaster
base board on both side
5) Sound insulation coefficien :STC 32db to 53 db, ASTM standard of acoustic tested in HongKong.
6) available in wide range of finishes.
7) Fast delivery and Rich experiences in oversea project installation guide & supervision.
Specifications for sliding partition walls
1)Interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.
2)To ensure additional friction connection, shall be integrated with magnetic strip.
3)Sliding partition walls are easy element adjustment after installation.
4)Track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.
5) Around the board ,there is sound insulation rubber, it can help to insulate the sound entering;
6) The operation ways is much easier, it’s better than the old ways which was use spring before;
7) We can add single or double doors on the board for convenience;
8) We have many different finish to meet customer different requirement and get different decoration effect.
| Description of the whole system | |
| Item | movable partition systems |
| Partition Height | 2-17 meters |
| Sound Transmission Class(STC) | 32-55db |
| Description of accessories | |
| Roller | Imported dupont POM material roller,bearing capacity 225-1300kg |
| Track System | Clear anodized 6063-T6 aluminum double track |
| Surface finish option | MDF,plywood, melamine,HPL,fabric,PU,wood veer, mirror steel ect. |
| Junction | "T"junction, "L" juntion, cross/ "X" juntion |
About us
Guangzhou Bunge Building Decoration Engineering Co.,Ltd is a professional company in manufacturing Movable Partitions.It also artistically designs and carefully does research and development,.The company has adopted the advance partition technology of USA,Germany and Denmark.We have professional staff with more than 10 years of experience in design,production and installation.
BUNGE movable partition wall is made of high quality anodized aluminum frame with environmentally composite materials.the panels move on a ceiling track with no requirement of floor guides or rails.,the panel has a standard thickness of 65 mm ,85 mm and 100 mm,and a width up to 1230 mm.Maximum height can reach 17 meters tall.
