Temporary Operable Sliding Partition Walls Retractable Aluminum Frame
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BANGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm sliding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | US Dollars 80 - 120 per square meters |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Open Style: | Sliding | Product Name: | Sliding Partition Walls |
|---|---|---|---|
| Feature: | Sound Proofing | Size: | 85 Mm |
| Color: | Accept Customized | Application: | Office,hotel,school |
| Panel Width: | 500 Mm--1230 Mm | Door Material: | Melamine Board |
| Surface: | Melamine,leather,fabric,plywood | Position: | Interior |
| Width: | 85 Mm(3 1/4 Inch) | ||
| High Light: | acoustic sliding partition,sound proof sliding partitions |
||
Product Description

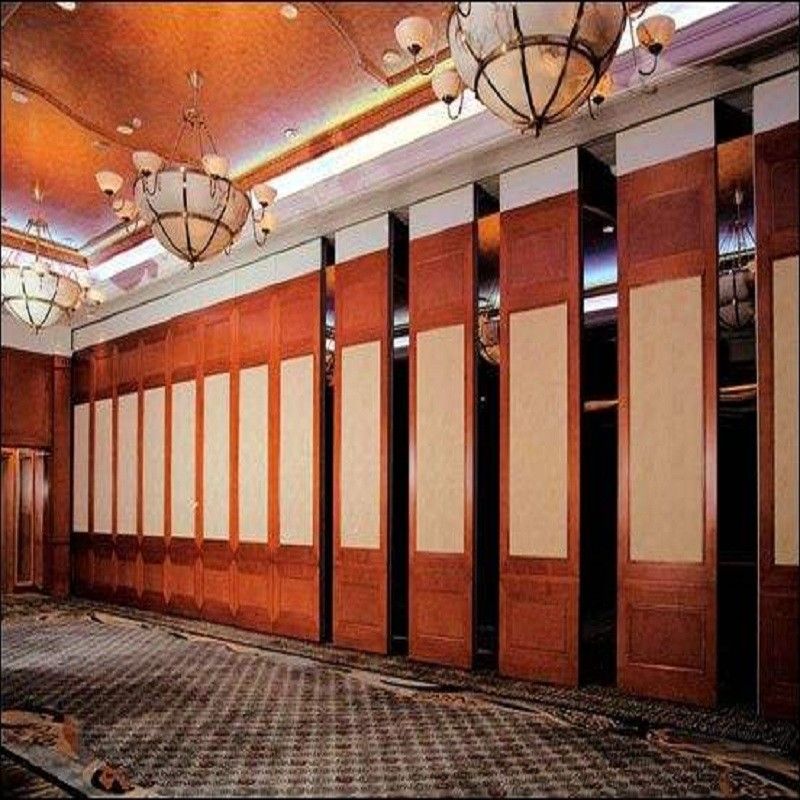

Retractable Aluminum Frame Temporary Operable Sliding Partition Walls
Sliding partition walls contruction:
Sliding partition wall panels are of double skin construction with a robust internal aluminium frame.The panel faces are not hard fixed to the frame and therefore when sound waves hit one side of the wall the vibration caused is not directly transferred to the opposite face.Aluminium edge profiles may be concealed,or exposed to provide a trim.
Heavy duty rubber gaskets are fitted to the panel profiles ensuring maximum acoustic sealing to all surrounding surfaces.The highest levels of sound reduction are achieved by introducing rubberize bitumen membranes and mineral wool insulation to the core of each panel.
The rapid action mechanism,which operates the retractable seals, is designed to exert sufficient pressure to achieve the high levels of sound reduction offered.The retractable seals are designed to tolerate deviations in floor level and deflections of supporting structures.The tolerance limit is evaluated for each individual application.
Sliding partition walls usage
(1)Size of wall: all panels should be installed in accordance with the manufacturers recommendations.
(2)Cutting: all necessary hardware and accessories for a complete job installation are to be furnished by the contractor.
(3)Install the acoustic sliding partition walls panels: the installation of acoustic sliidng partition walls panels should be carried out in a sequence from the left to the right, from upside to downside, the panels are cut to fit on site, traditional woodworking tools are suitable for cutting the panels, if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tearout or chipping.
(4)Fix on keel:
Wooden keel fixing using nails, staples or screws into prefixed timber battens on the sliidng partition walls via the tongue and groove joint.It also can fixing by:light steel keel.
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
|
Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
The sliding partition walls feature:
1.Hanging on ceiling-The floor without a track, just put the rail mounted on the ceiling
2.Excellent Quality-Each pieces of partition can turn around 360 degree.
3.Stable and secure-After partition is stable and reliable, and is not easy to swing.
4.Energy efficient-The large space divided into a small space, in order to reduce air conditioning power consumption;
5.Heatproof & fireproof-Good heat insulation performance,Adopt effective fire prevention materials
6.Elegant appearance-Surface any adornment, can unite with indoor adornment effect
7.Easy to collect-Can be hidden in the special coffer, does not affect the overall appearance
8.Various applications-Hotels,exhubition halls,restaurants,multi-functional rooms etc.
