|Open Style:||Sliding||Product Name:||Folding Partition Walls|
|Feature:||Sound Proofing||Size:||85 Mm|
|Color:||Accept Customized||Application:||Office,hotel,conference Room|
|Panel Width:||500 Mm--1230 Mm||Door Material:||Melamine Board|
|Width:||85 Mm(3 1/4 Inch)|

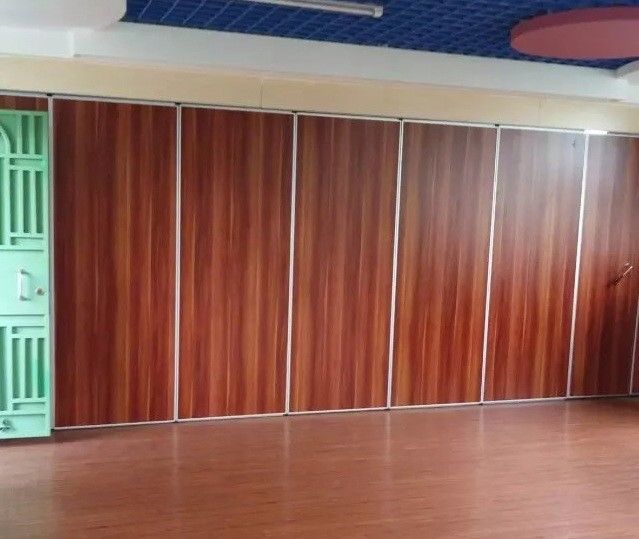

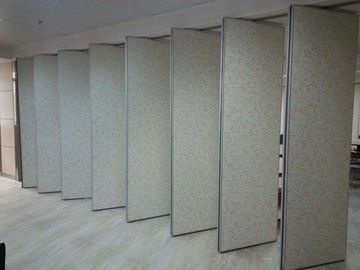

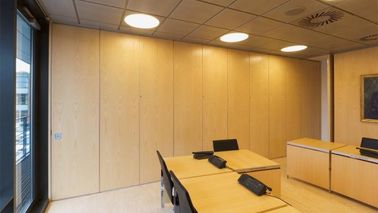

Lightweight Movable Walls and Sliding Folding Partition Walls for Art Gallery
The folding partition walls series is the highest specification range of fully operable, individual-panel movable partitions system. Acoustic insulation of up to 56dB noise reduction is achieved with a combination of operable top and bottom seals, high performance multiple in fill's and a panel assembly design that allows an acoustic break between the frame and outer layer.
The vertical channels of each panel incorporate polymer inserts that facilitate an acoustic seal when the panels are set out as a wall. Panels are produced in three thickness, 65 mm, 85 mm and 100 mm, depending on acoustic rating (from 37dB–56dB).
Our movable and folding partition walls system accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Folding partition walls feature:
Individual panels that can be stored away for maximum space utilization.
Operable top and bottom seals for effortless operation.
Isolated aluminium frame construction for enhanced acoustics.
High performance multiple in fill's for maximum sound attenuation.
Unique track and carrier system ensuring quiet and easy operation.
Numerous panel stacking options for complete flexibility.
No floor track ensuring obstruction free threshold.
Three panel sizes to accommodate a wide range of acoustic requirements .
Extensive range of surface finishes can be applied.
Technical data of Type 65 movable partition :
|Panel Suspension||Top hanging system without the need for a floor track.|
|Panel Width||Each panel 600mm-1200mm.|
|Track||Aluminum Or Steel Track|
|Roller on panel||Single or Double Roller|
|Panel Frames||Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.|
|Top and bottom seals||Top and bottom pressure retractable seals ensure effortless moved and locked.|
|Module||700mm - 1200mm maximum.|
|Panel stacking||Numerous panel stacking options for complete flexibility.|
|Panel Surface||MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.|
|Finishes||Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard.|
