Acoustic Moving Sound Proof Room Divider Flexible Aluminium Track For Office

China Acoustic Moving Sound Proof Room Divider Flexible Aluminium Track For Office supplier
Acoustic Moving Sound Proof Room Divider Flexible Aluminium Track For Office supplier Acoustic Moving Sound Proof Room Divider Flexible Aluminium Track For Office supplier Acoustic Moving Sound Proof Room Divider Flexible Aluminium Track For Office supplier Acoustic Moving Sound Proof Room Divider Flexible Aluminium Track For Office supplier

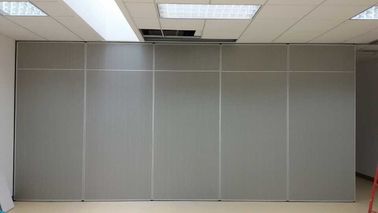

Large Image :  Acoustic Moving Sound Proof Room Divider Flexible Aluminium Track For Office

Product Details:

Place of Origin: China,Guangzhou
Brand Name: BUNGE
Certification: ISO9001
Model Number: Series 65 mm folding partition walls

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: 108 / 137 dollar per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Contact Now
Detailed Product Description
Service: OEM Service Metal Type: Aluminium
Height: 4 M Panel Type: Melamine,acoustic Fabric
Color: Multi Color Open Style: Folding
Application: Office, Meeting Room Function: Soundproof
Thickness: 65 Mm Door Material: MDF Board

Acoustic Moving Room Divider Office Folding Partition Wall



Description:


Type 65


Product information: The partition thickness is 65mm, there are single-wheel type and single-chip dual-wheel type, can open U-shaped and L-shaped door in the door, the maximum load of each screen is 225kg, the top and bottom expansion range is 22.5 Mm.


The nature of the product: The magnetic stripe is vertically embedded and sealed.


Among them: The reference plane is a medium-density fiberboard or splint, and its sound-insulating coefficient is RW=32dB, and its density is 24kg/m2.


Product use: Suitable for partition height between 2.5 meters and 4.2 meters.



Type 85


Product Information: The thickness of the partition is 85mm. There are single-wheel single-wheel type and single-plate double-wheel type. U-shaped and L-shaped doors can be opened. The maximum load of each screen is 450KG, and the bottom top telescopic range is 22.5mm.



Nature of the product: Magnetic strips are attached to the two screens. When they are close, they attract themselves. They have good sealing and sound insulation properties.


Among them: The reference plane is a medium-density fiberboard or splint, and its sound-insulating coefficient is RW=40dB, and its density is 32kg/m2.


Product use: Suitable for partition height between 3 meters and 7.5 meters.



100 type


Product Information: The partition thickness is 100mm, with single-wheel single-wheel type and single-chip double-type, can open U-shaped and L-shaped door middle door, the maximum load of each screen is 175kg, the top and bottom expansion range is 22.5 mm .


Nature of the product: Magnetic strips are attached to the two screens. When they are close, they attract themselves. They have good sealing and sound insulation properties.


Among them: The reference plane is a medium-density fiberboard or splint, and its sound-insulating coefficient is RW=50dB, and its density is 38kg/m2.


Product use: Suitable for partition height between 5 meters and 9 meters.



Acoustic Moving Sound Proof Room Divider Flexible Aluminium Track For Office


Acoustic performance:


Our sliding partition walls are consistently rated with the highest acoustical performance in the industry in real life environments not just in the Lab.


Identify Sound Flanking paths to reduce sound transmission to and from the entire acousticalenvelope,walls, ceiling, floors, air ducts, windows, etc.


Determine optimal sound absorbing material to help minimize the level of sound generated in your space.



Sound proofing maximization.



Provide stylish acoustical design solutions.



Sound testing provided by us or independent sound testing company.


Technical information:



TYPE BG65 BG85 BG100
Panel suspension Top hung only
Track system Single or twin point
Panel thickness 65 mm 85 mm 100 mm
Panel height Up to 4000mm,heights greater than 3000mm refer to our technical dept. Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height 4000mm 6000mm 18000mm
Panel width

500 - 1200mm

1' 5/8" -- 4'

500 - 1200mm

1' 5/8" -- 4'

500 - 1200mm

1' 5/8" -- 4'

Frame Aluminum Aluminum Aluminum
Surface material 9mm 9mm 12mm
Fire safety Optional class I Optional class I Optional class I
Vertical profiles Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional
Retractable seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals
Operation of seals Manual, with supplied operating handle
Locking Optional lock to passing doors
Passing doors Single open in one panel or double open in two panel
Sound insulation 32-38dB Rw 36-45dB Rw 42-55dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx 30-48kg/sq M


Acoustic Moving Sound Proof Room Divider Flexible Aluminium Track For Office

Advantage:


The activity partition can split multiple boxes and regulate the independent space area. It can give customers a private space to enjoy food, chat and chat, without external interference, effective sound insulation, so that consumers have a comfortable environment. Today's hotel must have an activity partition installed. There are hundreds of surface colors to choose from, according to the hotel's overall decorative style to give you a professional color matching.



The activity partition can be said to be an effective helper of the catering industry. It can flexibly and quickly divide the space and use the limited space of the hotel lobby to the maximum. No matter how many customers, they can get suitable boxes, large wedding banquets and small dining rooms.



The partition of the multi-function conference hall can divide the large space into small spaces to reduce the air-conditioning power consumption, and to cut off and move freely, promoting flexibility. One person can complete the entire process of partitioning and separate a spacious, bright and tall conference hall.

The active partition is no track on the ground, and the track is installed on the ceiling. Each door is free to rotate and rotate 360 ​​degrees. When the space needs to be divided, it is connected to a wall. When not in use, it is stored on the wall, which does not affect the overall appearance and effectively play a role. The role of partition space.
