Auditorium ECO Wooden Grooved Sound Absorbing Panels , Wood Sound Diffuser

China Auditorium ECO Wooden Grooved Sound Absorbing Panels , Wood Sound Diffuser supplier
Auditorium ECO Wooden Grooved Sound Absorbing Panels , Wood Sound Diffuser supplier Auditorium ECO Wooden Grooved Sound Absorbing Panels , Wood Sound Diffuser supplier Auditorium ECO Wooden Grooved Sound Absorbing Panels , Wood Sound Diffuser supplier Auditorium ECO Wooden Grooved Sound Absorbing Panels , Wood Sound Diffuser supplier

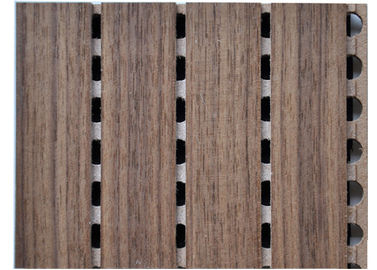

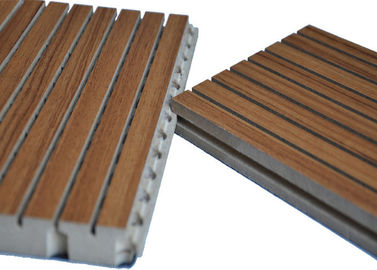

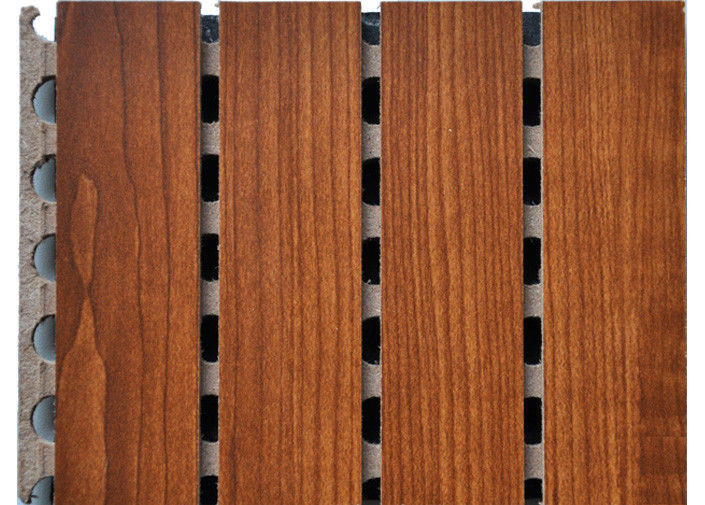

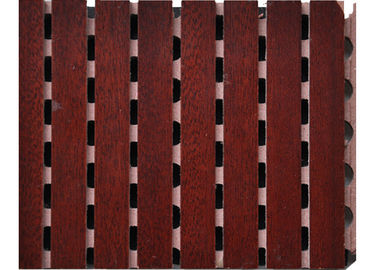

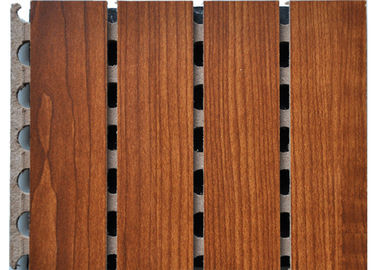

Large Image :  Auditorium ECO Wooden Grooved Sound Absorbing Panels , Wood Sound Diffuser

Product Details:

Place of Origin: Guangdong
Brand Name: BANGE
Certification: ISO9001
Model Number: Grooved wooden wall panels

Payment & Shipping Terms:

Minimum Order Quantity: 100 square meters
Price: 10.5-39.5 dollars per square meters
Packaging Details: Standard paper carton or customized packaging
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200000 square meters per month
Contact Now
Detailed Product Description
Product Name: Grooved Wooden Acoustic Panels Back Finish: Black Fleece
Finish: Melamine,venner Finish Type: Acoustic Wall Panels
Application: Hotel/ Gym/Theater Etc Thickness: 12/15/18 Mm
Color: Accept Customized Models: 28/4,13/3,18/3,59/5,60/4,40/3
Size: 2440*133,2440*197 Mm

Auditorium ECO Wood Sound Diffuser Wooden Grooved Acoustic Wall Panels

Wooden Grooved Acoustic Wall Panels Details



Structure Base material ,Finish,&Back Finish
Basic Material E1 MDF,FR MDF,Mgo Combination Board etc
Front Finish Melamine ,Natural Wood Veneer,Paint,etc
Back Finish Black Felt
Standard Size 2440*192mm,2440*128mm
Standard Thickness 12/15/18mm
Standard pattern 13-3,14-2,28-4,59-5
Acoustic Principle Resonance Absorption
Eco-Friendly Can meet both China&EU Standard ClassE1
Fire resistance Can meet China Standard class B1&BS476 part7 Class1

Auditorium ECO Wooden Grooved Sound Absorbing Panels , Wood Sound Diffuser



Decorative Laminate

BUNGE Acoustic Wood Panels come in a standard range of Decorative laminates

Model
QS-WG15A-M
QS-WG15B-W
QS-WG15C-P
Thickness
15 mm
15 mm
15 mm
Pattern
13-3
14-2

 28-4

Finishing
Melamine
Wood Veneer
Painting



Model type 28/4,30/2,29/3,14/2,13/3,59/5,5/3,40/3
Size 130*2440
Thickness 12,15,18mm
Finish melamine,veneer,
paint UV,PU painting
Base material Standard MDF, Eco-pine wood MDF, Fireproof MDF, Moistureproof MDF, Magnesium Composited MDF
MDF density 680kg/cubic meter~830kg/cubic meter
Backside finish Fiber proof acoustic fabric
Fireproof grade GB8624 2006 B,A
Eco-protection grade E0,E1
Installation aluminum keel and clips, wood frame, gun nail
Backside hole diameter 10 mm
Interval 2~4mm
Veneer type thickness 0.3,0.6mm
Veneer texture Mountain texture, straight line
Veneer tree species

Maple,cherry,Oak, teak,walnut, Sapele,beech,birch,

Chinese walnut,macore,sandalwood

Certification BV,CE,SGS,ISO9001-2008,
Test report Eco protction, sound absorption, flame retardant



Specification:



1.Core material: high quality CMA combination board, E1 MDF , FR MDF and MGO combination board can also be used.



2.Thickness 12/15/18mm



3.Surface: melamine / wood veneer with natural wood veins for over 100 colours



4.Black felt: noise reducible element.



5.Size:2440*128mm



6. Specificaitons:13-3,14-2,19-3,18-4,28-4,29-3,38.5-4,59-5(mm)



7.Low formaldehyde emission, conforms to E1 Standard of Environmental protection



8. Has the highest fireproof of Class B1, passed National Fire protection Authority.



9.Easy to install



10. Widely used in Hotel, Dinning Room, Shopping Center, Theatre,Dancing Room,Cinema, Station, meeting room, Office, Airport, villas and residential areas etc.

Auditorium ECO Wooden Grooved Sound Absorbing Panels , Wood Sound Diffuser

Specification



MATERIAL: high quanlity MDF

SURFACE :Wooden Veneer,Melamine or Fireproof surfance

PATTERN: 32/32/3~25mm ,16/16/3~8 or customer request

THICKNESS: 12 /15 /18 mm

SIZES: 600*600mm ,600*1200mm

COLORS: A wide range of standard colors,custom colors for surface

FLAMMABILITY: GB 8624-1997, Class B1



Installation



Install with keel (wooden or steel) and clips



Application



Offices, schools, meeting rooms, music rooms, hotels, auditoriums, recording studios, broadcasting studios. Any space where good speech privacy or speech intelligibility is important.



Auditorium ECO Wooden Grooved Sound Absorbing Panels , Wood Sound Diffuser
