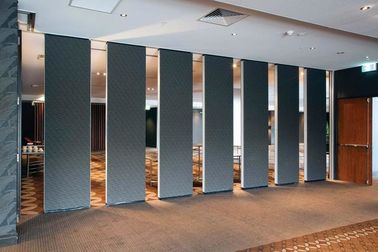

Leather Folding Acoustic Room Divider / Movable Partition Wall
Product Details:
Place of Origin: | China,Guangzhou |
Brand Name: | BUNGE |
Certification: | ISO9001 |
Model Number: | Series 65 mm sliding partition walls |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 square meters |
---|---|
Price: | 97 / 138 dollar per square meter |
Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 5000 square meters per month |
Detail Information |
|||
Height: | 4 M | Finished: | Leather,melamine |
---|---|---|---|
Material: | MDF Board+Aluminium | Thickness: | 65 Mm |
Application: | Office,conference Room | Service: | OEM Service |
Width: | 500-1200 Mm | ||
High Light: | sliding folding partition,sound proof sliding partitions |
Product Description
Movable Door Aluminium Track Sliding Partition Walls
Feature:
Sound insulation: up to 54dB as standard – Solid walls (Alma)
Sound insulation: up to 42dB as standard – Double-glazed walls (Aqua)
Fire Rating: EI2.30 (laboratory certified)
Fire classification: EN13501-1 B-s2, d0 (laboratory certified)
Unlimited metal coatings: including in tumescent ink, galvanizing, anodizing, powder coating.
Double-glazed units use 6mm toughened / tempered safety glass.
No floor track – panels are hung by use of single or twin-point suspension system.
Two, three or four way modules to enable multiple track configurations & stacking systems.
Electronic seal by key-switch or quick-set half-turn manual mechanism.
Operation:

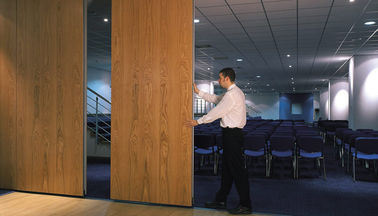

When the operable seals are retracted, panels glide effortlessly and quietly along the unique aluminium overhead track system (no need for floor guide).
Telescopic end panels enable the wall to be locked off to complete the acoustic seal. The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.
Description:
The operable wall is an individual panel partition wall system, designed to maximize noise reduction whilst manipulating interior space. 56dB noise reduction is achieved with a combination of operable top and bottom seals, high performance multiple and a panel assembly design that allows an acoustic break between the frame and outer layer. The panels can be supplied with almost any surface finish, including MDF board bare finish, acoustic fabric and leather, melamine.
Technical information:
Series | BG65 | BG85 | BG100 |
Panel suspension | Top hung only | Top hung only | Top hung only |
Panel thickness | 65 mm | 85 mm | 100 mm |
Max height | 4000 mm | 6000 mm | 18000 mm |
Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
Face material | 9 mm | 9 mm | 12 mm |
Pass doors | Single door or Double door | ||
Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
We can offer:
A full professional design service.
Survey and installation guide.
Using top quality materials and components.
A fully experienced work team.
Maintenance contracts to ensure your valuable asset remains in full work order.
Supporting:
Our after sales service is recognized as being second to none.
You can expect unlimited telephone support on technical or operating issues.
Our technicians can be on-site within 24 hours in emergency situations.
Extended warranty packages are available on request.
