Banquet Hall Acoustic Folding Wooden Partition Wall with Aluminum Track

Banquet Hall Acoustic Folding Wooden Partition Wall with Aluminum Track

Product Details:

Place of Origin: Guangdong
Brand Name: BANGE
Certification: ISO9001
Model Number: 85 mm wooden partition walls

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: US Dollars 80 - 118 per square meters
Packaging Details: Carton package, MDF batten on four section sides , foam board on both front face.
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Material: MDF + Aluminum Position: Interior
Technic: Double Rollers Thickness: 85 Mm(3 1/4 Inch)
Product Name: Wooden Partition Walls Panel Width: 500 Mm--1220 Mm
Feature: Sound Proofing System: Hanging System
Application: Hotel,banquet Hall Style: Sliding
High Light:

acoustic operable partitions

,

acoustic operable wall

Product Description

Banquet Hall Acoustic Folding Wooden Partition Wall with Aluminum Track

Banquet Hall Acoustic Folding Sliding Wooden Partition Walls with Aluminum Track



Specification

Panel Suspension: Top hunge system without the need for a floor track.
Panel Width: Each panel 600mm-1200mm.
Track: Aluminum OR Steel Track
Roller on panel: Single or double roller.
Panel Frames: Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
Top&bottm seals: Top and bottom pressure retractable seals ensure effortless moved and locked.
Module: 700mm - 1200mm maximum.
Panel stacking: Numerous panel stacking options for complete flexibility.
Panel face: MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes: Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard.

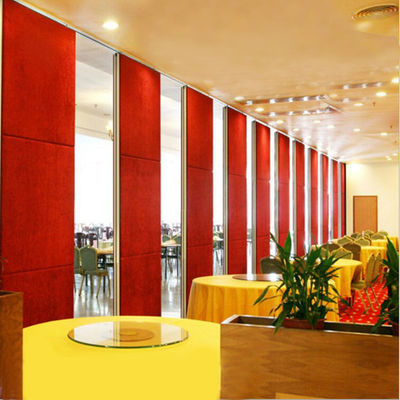

Banquet Hall Acoustic Folding Wooden Partition Wall with Aluminum Track 0


What is our function?
The BUNGE acoustic sliding wooden partition is a top quality moveable wall system that allows you to optimize the use of available space with speed and ease.
Soundproof Partitions Wall for Hotel



How to work?
These sophisticated acoustic wooden partition walls do not require a floor track and yet once positioned the interlocking panels form a rigid structure giving all the properties and appearance of a permanent wall.
The Neuwall operable wall system comprises panels up to 1200 mm wide. Actual panel widths are determined by the site aperture, there are no standard sized panels or 'make up' panel.



1.Our easy lock-up set, Retractable pressure seals on top and bottom are extended and retracted by a single 180°turn removable operating handle.

Soundproof Partitions Wall for Hotel



2.Retractable Pressure Seals--Once the panel is positioned, they are sealed in place with retractable pressure seals

Soundproof Partitions Wall for Hotel

3.Telescopic sleeve panel--Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. The sweep strip simultaneously extends the top and bottom. The rubber sealing strip on the side edge of telescopic panel can seal the wall tightly to reach acoustic integrity.

Soundproof Partitions Wall for Hotel


Ultra-high type is designed for movable partition as high as 7 m to16 m with max soundproof rate 53 dB. Load bearing of each meter is more than 2000 kilograms, pulley bearing more than 1600 KGS, used in large place, such as banquet hall, multi-function hall, exhibition center, gym and conference room. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 16 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.,
Cambodia ultrahigh type sound proof movable partitions for hotel and auditorium
