Aluminum Sound Proof Acoustic Floor to Ceiling Movable Partition Walls

Aluminum Sound Proof Acoustic Floor to Ceiling Movable Partition Walls

Product Details:

Place of Origin: Guangdong
Brand Name: BANGE
Certification: ISO9001
Model Number: 85 mm movable partition walls

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: US Dollars 78 - 120 per square meters
Packaging Details: Carton package, MDF batten on four section sides , foam board on both front face.
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Feature: Voice Insulation System: Hanging System
Thickness: 85 Mm(3 1/4 Inch) Panel Width: 500 Mm--1220 Mm
Application: Hotel,banquet Hall Style: Sliding
Product Name: Movable Partition Walls Material: MDF + Aluminum
High Light:

conference room dividers

,

sound proof room divider

Product Description

Aluminum Sound Proof Acoustic Floor to Ceiling Movable Partition Walls

Banquet Hall Aluminum Sound Proof Acoustic Floor to Ceiling Movable Partition Walls



Features



BUNGE Movable Partition Wall is aluminum-framed operable partition is the most versatile operable wall constructed today.Partitions are a series of flat panels, approximately range from 600 mm (23") to 1200 mm (47") wide. They have a wide array of features and options to meet most design and budget requirements. Models are acoustically rated, available in 65 mm (2.6"), 85 mm (3") or 100 mm (4") thick models, and in single, pair hinged configurations.

The sound proof movable partition wall system is tongue-and-groove unitized panel system. Panels are precision laminated, pre-finished with vinyl, fabric or other specified finish. All vertical and horizontal structural members consist of extruded aluminum components, with a snap-on base made of extruded vinyl. Panels lift into floor and ceiling tracks to form a rigid, uniform wall system that provides excellent sound transmission resistance with a STC rating of 32 to 53dB.

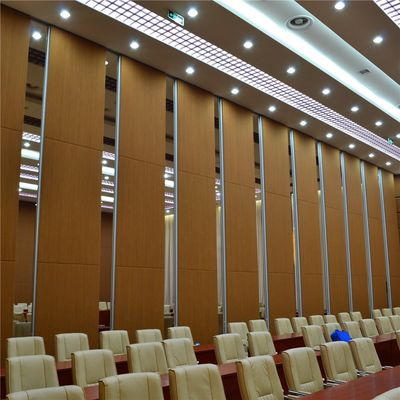

Aluminum Sound Proof Acoustic Floor to Ceiling Movable Partition Walls 0



What is the function



The Bunge movable partition wall is a top quality moveable wall system that allows you to optimize the use of available space with speed and ease.



How to work



These sound proof movable partition walls do not require a floor track and yet once positioned the interlocking panels form a rigid structure giving all the properties and appearance of a permanent wall.
The BUNGE movable partition walls system comprises panels up to 1200mm wide. Actual panel widths are determined by the site aperture, there are no standard sized panels or 'make up' panels.

Cambodia ultrahigh type sound proof movable partitions for hotel and auditorium



Our Advantage


Our easy lock-up set, Retractable pressure seals on top and bottom are extended and retracted by a single 180°turn removable operating handle.

Retractable Pressure Seals-Once the panel is positioned, they are sealed in place with retractable pressure seals

Telescopic sleeve panel-Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. The sweep strip simultaneously extends the top and bottom. The rubber sealing strip on the side edge of telescopic panel can seal the wall tightly to reach acoustic integrity.

Cambodia ultrahigh type sound proof movable partitions for hotel and auditorium

Specification



Panel Suspension: Top hunge system without the need for a floor track.
Panel Width: Each panel 600mm-1200mm.
Track: Aluminum OR Steel Track
Roller on panel: Single or double roller.
Panel Frames: Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
Top&bottm seals: Top and bottom pressure retractable seals ensure effortless moved and locked.
Module: 700mm - 1200mm maximum.
Panel stacking: Numerous panel stacking options for complete flexibility.
Panel face: MDF,Plywood, woven fabric, Leather,Natural wood veneer,Melamine,Wood moldings, etc.
Finishes:

Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard.

Aluminum Sound Proof Acoustic Floor to Ceiling Movable Partition Walls 3
