Payment & Shipping Terms:
|Panel Width:||500 Mm--1220 Mm (Accept Customized)||Material:||MDF+Aluminum|
|Application:||Hotel,office ,conferance Room||Color:||Color Selective (Customized)|
|Thickness:||65 Mm(2 9/16 Inch)||Finishing:||Melanimine,fabric,leather Etc.|
|Feature:||Voice Insulation||STC Conffcient:||32/50db|

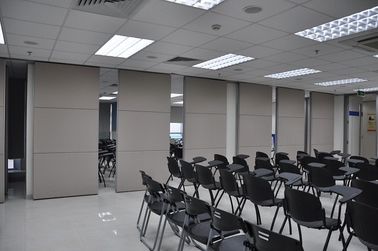

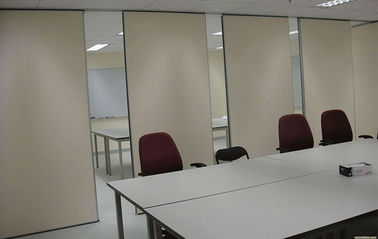

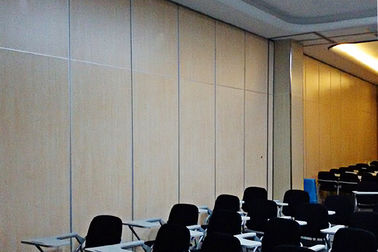

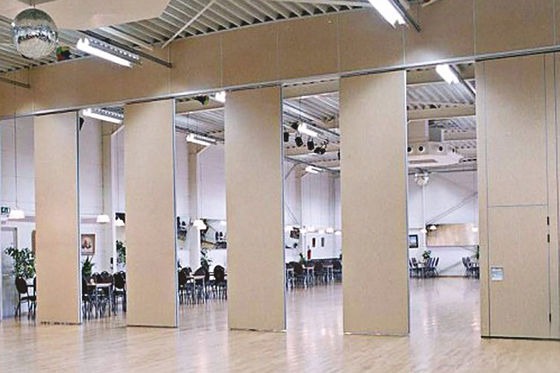

Sound Proof Floor or Ceiling Folding Partition Wall /Acoustic Rolling Room Dividers
Partition door mechanism structure
To create a better sound insulation movable partition door, we put high density fiberglass inside the partition frame, Sourcing from imported world famous fiberglass brand " Owens Corning" which is the best sound insulation cotton manufacturer.
Bunge Operable Wall Systems-Technical Information
|Series||BG65||BG80 / BG85||BG100 & BG125|
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel thickness||65mm||80mm / 85mm||100mm|
|Panel height||Up to 4000mm||Up to 6000mm||Up to 18000mm|
|Frame construction||Aluminum frame||Aluminum frame||Aluminum frame|
|Face material||9mm||9mm / 12mm||12mm|
|Fire safety||Optional Class I or O||Optional Class I or O||Optional Class I or O|
|Vertical profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles|
|Retractable seals||Aluminum black with
double rubber seals
|Aluminum black with double rubber seals||Aluminum black with double rubber seals|
|Operation of seals||Manual, with supplied
|Manual, with supplied operating handle||Manual, with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass doors||Single open in panel or
double open in two panel
|Single open in panel or double open in two panel||Single open in panel or double open in two panel|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx30-48kg/sq M|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)|
the section configuration
1) substrate(basal material): based on high quality of 12/15/18mm MDF with density of 750kg/m3,
more choices for basal material:HDF, E1 ECO-friendly MDF and Fireproof MDF(B1 grade).
2) feld: acoustic fleece, pasted on the back of the panel, noise reducible and fire resistant(made in CHINA, GERMANY AND FRANCE)
3) surface: available in three different finishes: real wood veneer, printed wood melamine finished and fireproofing surface.
Stadium, Auditorium, Multifunction room, Meeting room, Studio and any other places where seek for high acoustic requirements.
Guangzhou Bunge Building Decoration Engineering Company Limited is a professional company in manufacturing Movable Partitions . It also artistically designs and carefully does research and development . The company has adopted the advance partition technology of USA , Germany and Denmark . We have professional staff with more than 10 years of experience in design , production and installation .
Contact Person: Michelle Mo
